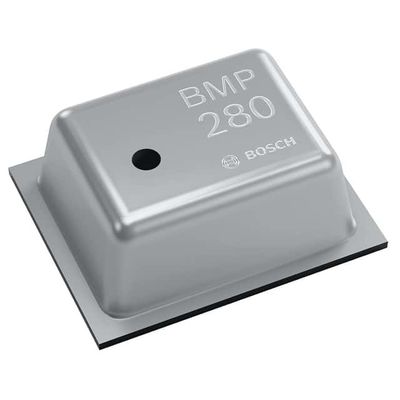

Board Mount Integrated Circuit Sensor BMP280 15.95PSIA 16bit 8SMD Bosch Sensortec
| Brand Name | Bosch Sensortec |
|---|---|
| Model Number | BMP280 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Standby Mode | Applications | Board Mount |
|---|---|---|---|
| Pressure Type | Absolute | Operating Pressure | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) |
| Output Type | I²C, SPI | Output | 16b |
| Accuracy | ±0.015PSI (±0.1kPa) | Voltage - Supply | 1.71V ~ 3.6V |
| Port Size | - | Port Style | No Port |
| Termination Style | SMD (SMT) Tab | Maximum Pressure | 290.08PSI (2000kPa) |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 8-SMD | Supplier Device Package | 8-SMD |
| High Light | Board Mount Integrated Circuit Sensor,Integrated Circuit Sensor 16bit,BMP280 |
||
Product Description
BMP280 SENSOR 15.95PSIA 16BIT 8SMD Bosch Sensortec
Product Details
General Description
Robert Bosch is the world market leader for pressure sensors in automotive and consumer applications. Bosch’s proprietary APSM (Advanced Porous Silicon Membrane) MEMS manufacturing process is fully CMOS compatible and allows a hermetic sealing of the cavity in an all silicon process. The BMP280 is based on Bosch’s proven Piezo-resistive pressure sensor technology featuring high EMC robustness, high accuracy and linearity and long term stability.The BMP280 is an absolute barometric pressure sensor especially designed for mobile applications. The sensor module is housed in an extremely compact 8-pin metal-lid LGA package with a footprint of only 2.0 × 2.5 mm2 and 0.95 mm package height. Its small dimensions and its low power consumption of 2.7 µA @1Hz allow the implementation in battery driven devices such as mobile phones, GPS modules or watches.
Target devices
• Handsets such as mobile phones, tablet PCs, GPS devices• Navigation systems
• Home weather stations
• Flying toys
• Watches
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | BOSCH |
| Product Category | Pressure Transducers |
| Manufacturer | Bosch |
| Product-Category | Board Mount Pressure Sensors |
| RoHS | Details |
| Operating-Pressure | 300 hPa to 1100 hPa |
| Pressure-Type | Absolute |
| Accuracy | 1 hPa |
| Output-Type | Digital |
| Mounting-Style | SMD/SMT |
| Interface-Type | I2C SPI |
| Package-Case | LGA-8 |
| Operating-Supply-Voltage | 12 V |
| Brand | Bosch Sensortec |
| Maximum-Operating-Temperature | + 85 C |
| Minimum-Operating-Temperature | - 40 C |
| Operating-Supply-Current | 2.8 uA |
| Packaging | Reel |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 1.71 V |
| Part-#-Aliases | 0273.300.354-1NV |
