TOP223YN 50W Power Management ICs Offline SW MULT TOP TO220-3 Power Integrations
| Brand Name | Power Integrations |
|---|---|
| Model Number | TOP223YN |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Isolation | Isolated | Internal Switch(s) | Yes |
|---|---|---|---|
| Voltage - Breakdown | 700V | Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | - | Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% | Frequency - Switching | 100kHz |
| Power (Watts) | 50 W | Fault Protection | Current Limiting, Over Temperature |
| Control Features | - | Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-220-3 | Supplier Device Package | TO-220-3 |
| Mounting Type | Through Hole | ||
| Highlight | 50W Power Management ICs,Power Management ICs Offline,TOP223YN |
||
Product Description

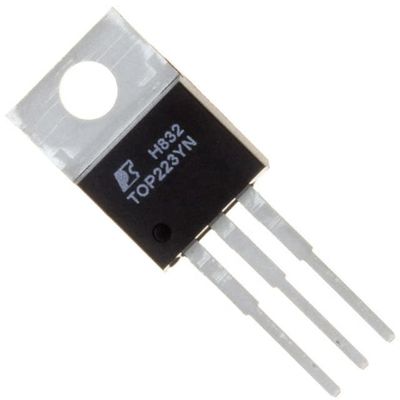

TOP223YN IC OFFLINE SW MULT TOP TO220-3 Power Integrations
Product Details
Description
The second generation TOPSwitch™-II family is more cost effective and provides several enhancements over the frst generation TOPSwitch family. The TOPSwitch-II family extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. This brings TOPSwitch technology advantages to many new applications, i.e. TV, Monitor, Audio amplifers, etc. Many signifcant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even easier.
Product Highlights
• Lowest cost, lowest component count switcher solution• Cost competitive with linears above 5 W
• Very low AC/DC losses – up to 90% effciency
• Built-in Auto-restart and Current limiting
• Latching Thermal shutdown for system level protection
• Implements Flyback, Forward, Boost or Buck topology
• Works with primary or opto feedback
• Stable in discontinuous or continuous conduction mode
• Source connected tab for low EMI
• Circuit simplicity and Design Tools reduce time to market
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Artesyn |
| Product Category | AC DC Converters, Offline Switchers |
| Series | TOPSwitch®-II |
| Type | Off Line Switcher |
| Packaging | Tube |
| Unit-Weight | 0.081130 oz |
| Mounting-Style | Through Hole |
| Tradename | TopSwitch |
| Operating-Temperature-Range | - 40 C to + 150 C |
| Package-Case | TO-220-3 |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Mounting-Type | Through Hole |
| Supplier-Device-Package | TO-220-3 |
| Watt | 50W |
| Output-Isolation | Isolated |
| Internal-Switch-s | Yes |
| Voltage-Breakdown | 700V |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage-Start-Up | - |
| Voltage-Supply-Vcc-Vdd | - |
| Duty-Cycle | 67% |
| Frequency-Switching | 100kHz |
| Fault-Protection | Current Limiting, Over Temperature |
| Control-Features | - |
| Output-Voltage | 5.7 V |
| Operating-Supply-Current | 1.2 mA |
| Switching-Frequency | 100 kHz |
| Package-Case | TO-220 |
| Duty-Cycle-Max | 70 % |
| Input-Supply-Voltage-Min | 85 VAC |
| Input-Supply-Voltage-Max | 265 VAC |
Descriptions
Converter Offline Boost, Buck, Flyback, Forward Topology 100kHz TO-220-3
AC/DC Converters 30W 85-265 VAC 50W100/115/230 VAC
