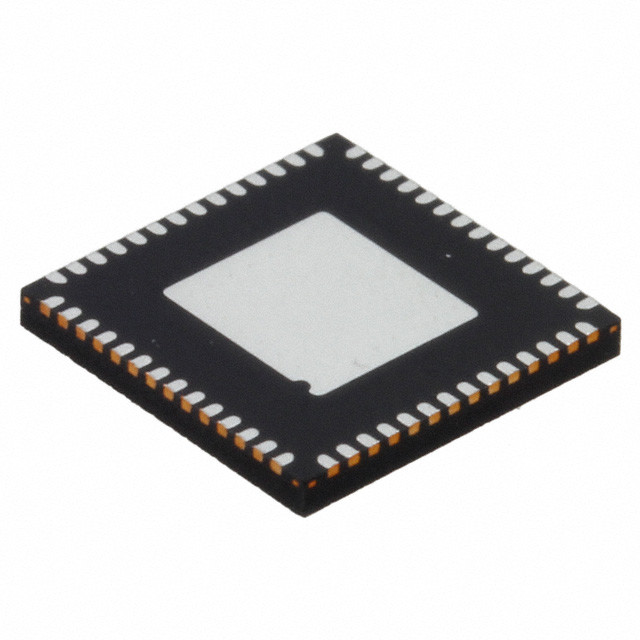

Industrial PMIC Power Management IC MMPF0100F0AEP REG CONV I.MX6 12OUT 56HVQFN

Brand Name N✖P USA Inc.
Model Number MMPF0100F0AEP
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applications Converter, I.MX6 Voltage - Input 2.8V ~ 4.5V
Number Of Outputs 12 Voltage - Output Multiple
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case 56-VFQFN Exposed Pad Supplier Device Package 56-HVQFN (8x8)
High Light

Industrial PMIC Power Management IC

,

Home PMIC Power Management IC

,

MMPF0100F0AEP

Leave a Message
Product Description

MMPF0100F0AEP IC REG CONV I.MX6 12OUT 56HVQFN N✖P USA Inc.

Product Details

Description

The PF0100 SMARTMOS power management integrated circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices and minimal external components. With up to six buck converters, six linear regulators, RTC supply, and coin-cell charger, the PF0100 can provide power for a complete system, including applications processors, memory, and system peripherals, in a wide range of applications. With on-chip one time programmable (OTP) memory, the PF0100 is available in pre-programmed standard versions, or non-programmed to support custom programming. The PF0100 is defined to power an entire embedded MCU platform solution such as i.MX 6 based eReader, IPTV, medical monitoring, and home/factory automation.


Features

• Four to six buck converters, depending on configuration
• Single/Dual phase/ parallel options
• DDR termination tracking mode option
• Boost regulator to 5.0 V output
• Six general purpose linear regulators
• Programmable output voltage, sequence, and timing
• OTP (one time programmable) memory for device configuration
• Coin cell charger and RTC supply
• DDR termination reference voltage
• Power control logic with processor interface and event detection
• I2C control
• Individually programmable ON, OFF, and standby modes


Application

• Tablets
• IPTV
• eReaders
• Set top boxes
• Industrial control
• Medical monitoring
• Home automation/ alarm/ energy management

Specifications

Attribute Attribute Value
Manufacturer Freescale / N✖P
Product Category Special Purpose Voltage Regulators
Unit-Weight 0.005213 oz
Manufacturer N✖P
Product-Category PMIC Solutions
RoHS Details
Brand N✖P / Freescale

Descriptions

- Converter, i.MX6 Voltage Regulator IC 12 Output 56-QFN (8x8)
Application Processors 2.8V to 4.5V 56-Pin HVQFN EP Tray
PMIC Solutions PFUZE100
