Durable 132kHz Power Management ICs LNK364PN SWITCH FLYBACK 8DIP Power Integrations

Brand Name Power Integrations
Model Number LNK364PN
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Isolation Isolated Internal Switch(s) Yes
Voltage - Breakdown 700V Topology Flyback
Voltage - Start Up - Voltage - Supply (Vcc/Vdd) -
Duty Cycle 60% Frequency - Switching 132kHz
Power (Watts) 9 W Fault Protection Current Limiting, Open Loop, Over Temperature, Short Circuit
Control Features - Operating Temperature -40°C ~ 150°C (TJ)

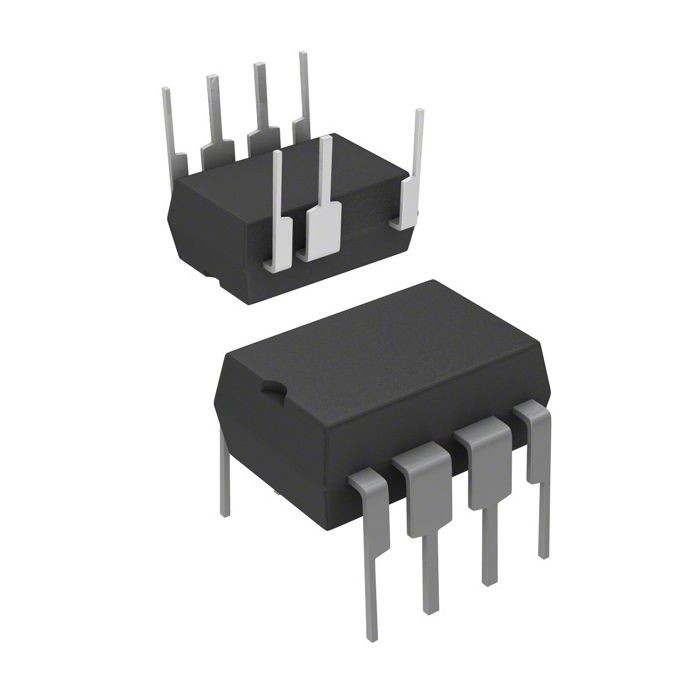

Package / Case 8-DIP (0.300", 7.62mm), 7 Leads Supplier Device Package 8-PDIP-B
Mounting Type Through Hole
High Light

Durable Power Management ICs

,

132kHz Power Management ICs

,

LNK364PN

Leave a Message
Product Description

LNK364PN IC OFFLINE SWITCH FLYBACK 8DIP Power Integrations

Product Details

LinkSwitch®-XT Family Energy Efficient, Low Power Off-Line Switcher IC



Description

LinkSwitch-XTincorporates a 700 V power MOSFET, oscillator, simple ON/OFF control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit and
thermal shutdown circuitry onto a monolithic IC. The startup and operating power are derived directly from the DRAIN pin, eliminating the need for a bias winding and associated circuitry.





Product Highlights

Optimized for Lowest System Cost
• Proprietary IC trimming and transformer construction techniques enable Clampless™ designs with LNK362 for lower system cost, component count and higher efficiency
• Fully integrated auto-restart for short circuit and open loop protection
• Self-biased supply – saves transformer auxiliary winding and associated bias supply components
• Frequency jittering greatly reduces EMI
• Meets HV creepage requirements between DRAIN and all other pins both on the PCB and at the package
• Lowest component count switcher solution

Features Superior to Linear/RCC
• Accurate hysteretic thermal shutdown protection – automatic recovery improves field reliability
• Universal input range allows worldwide operation
• Simple ON/OFF control, no loop compensation needed
• Eliminates bias winding – simpler, lower cost transformer
• Very low component count – higher reliability and single side printed circuit board
• Auto-restart reduces delivered power by 95% during short circuit and open loop fault conditions
• High bandwidth provides fast turn-on with no overshoot and excellent transient load response
EcoSmart®
– Extremely Energy-Efficient
• Easily meets all global energy efficiency regulations with no added components
• No-load consumption <300 mW without bias winding at 265 VAC input (<50 mW with bias winding)
• ON/OFF control provides constant efficiency to very light loads – ideal for mandatory CEC regulations





Applications

• Chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio players, and shavers
• Supplies for appliances, industrial systems, and metering



Specifications

Attribute Attribute Value
Manufacturer Artesyn
Product Category AC DC Converters, Offline Switchers
Series LinkSwitch®-XT
Type Off Line Switcher
Packaging Tube
Unit-Weight 0.080001 oz
Mounting-Style Through Hole
Tradename LinkSwitch
Operating-Temperature-Range - 40 C to + 150 C
Package-Case 8-DIP (0.300", 7.62mm), 7 Leads
Operating-Temperature -40°C ~ 150°C (TJ)
Mounting-Type Through Hole
Supplier-Device-Package DIP-8B
Watt 9W
Output-Isolation Isolated
Internal-Switch-s Yes
Voltage-Breakdown 700V
Topology Flyback
Voltage-Start-Up -
Voltage-Supply-Vcc-Vdd -
Duty-Cycle 60%
Frequency-Switching 132kHz
Fault-Protection Current Limiting, Open Loop, Over Temperature, Short Circuit
Control-Features -
Output-Voltage 5.8 V
Operating-Supply-Current 250 uA
Switching-Frequency 132 kHz
Package-Case DIP-8
Duty-Cycle-Max 60 %
Input-Supply-Voltage-Min 85 VAC
Input-Supply-Voltage-Max 265 VAC

Descriptions

Converter Offline Flyback Topology 132kHz DIP-8B
AC/DC Converters 6W 85-265 VAC 9W 230 VAC
