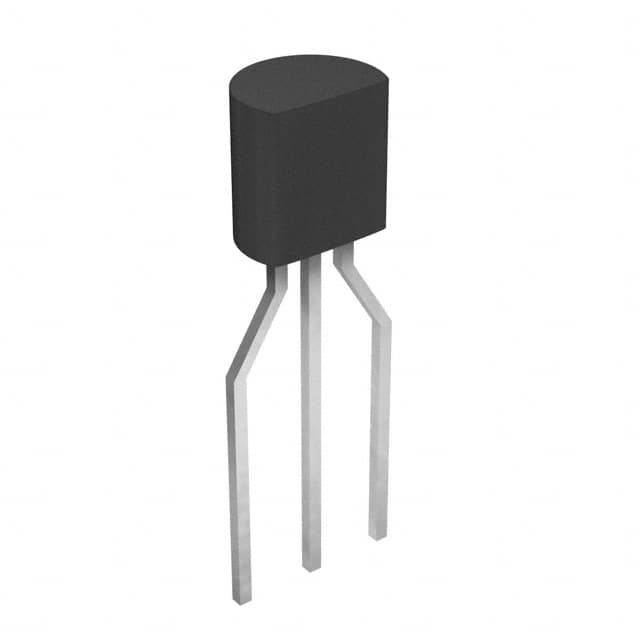

LM4041CILPR Power Management ICs VREF SHUNT TO92-3 Texas Instruments

Brand Name Texas Instruments
Model Number LM4041CILPR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Reference Type Shunt Output Type Adjustable
Voltage - Output (Min/Fixed) 1.233V Voltage - Output (Max) 10 V
Current - Output 12 MA Tolerance ±0.5%
Temperature Coefficient 100ppm/°C Noise - 0.1Hz To 10Hz -
Noise - 10Hz To 10kHz 20µVrms Voltage - Input -
Current - Supply - Current - Cathode 80 µA
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA) Formed Leads Supplier Device Package TO-92-3
High Light

1.233V Power Management ICs

,

Power Management ICs TO92-3

,

LM4041CILPR

Leave a Message
Product Description

LM4041CILPR IC VREF SHUNT ADJ 0.5% TO92-3 Texas Instruments

Product Details



General Description

Ideal for space critical applications, the LM4040 and LM4041 precision voltage references are available in the subminiature (3mm × 1.3mm) SOT-23 surface-mount package.
The LM4040 is the available in fixed reverse breakdown voltages of 2.500V, 4.096V and 5.000V. The LM4041 is available with a fixed 1.225V or an adjustable reverse breakdown voltage.
The minimum operating current ranges from 60µA for the LM4041-1.2 to 74µA for the LM4040-5.0. LM4040 versions have a maximum operating current of 15mA. LM4041 versions have a maximum operating current of 12mA.
The LM4040 and LM4041 have bandgap reference temperature drift curvature correction and low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Data sheets and support documentation can be found on Micrel’s web site at www.micrel.com.





Features

• Small SOT-23 package
• No output capacitor required
• Tolerates capacitive loads
• Fixed reverse breakdown voltages of 1.225, 2.500V, 4.096V and 5.000V
• Adjustable reverse breakdown version
• Contact Micrel for parts with extended temperature range.





Key Specifications

• Output voltage tolerance .............................±0.1% (max)
• Low output noise (10Hz to 100Hz)
LM4040................................................. 35µVRMS (typ)
LM4041................................................. 20µVRMS (typ)
• Wide operating current range
LM4040..................................................60µA to 15mA
LM4041..................................................60µA to 12mA
• Industrial temperature range .................. –40°C to +85°C
• Low temperature coefficient ................ 100ppm/°C (max)





Applications

• Battery-powered equipment
• Data acquisition systems
• Instrumentation
• Process control
• Energy management
• Product testing
• Automotive electronics
• Precision audio components





Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Voltage Reference
Series LM4041C
Packaging Cut Tape (CT) Alternate Packaging
Unit-Weight 0.007520 oz
Mounting-Style Through Hole
Package-Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Through Hole
Output-Type Adjustable
Supplier-Device-Package TO-92-3
Tolerance ±0.5%
Voltage-Input -
Current-Supply -
Current-Output 12mA
Reference-Type Shunt
Output Voltage 1.233V
Voltage-Output-Max 10V
Temperature-Coefficient 100ppm/°C
Noise-0#1Hz-to-10Hz -
Noise-10Hz-to-10kHz 20μVrms
Current-Cathode 80μA
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage Adjustable
Package-Case TO-92-3
Initial-Accuracy 0.5 %
Series-VREF-Input-Voltage-Max 15 V
Shunt-Current-Max 12 mA
Maximum-Output-Voltage 10 V
Shunt-Current-Min 60 uA

Descriptions

Shunt Voltage Reference IC 10V ±0.5% 12mA TO-92-3
V-Ref Adjustable 1.225V to 10V 25mA Automotive 3-Pin TO-92 T/R
Voltage References Adj Prec Micropwr Shunt Vltg Ref
