4.5-36V L293D Power Management ICs MTRDRV BIPLR 16PWRDIP STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | L293D |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type - Stepper | Bipolar | Motor Type - AC, DC | Brushed DC |
|---|---|---|---|
| Function | Driver - Fully Integrated, Control And Power Stage | Output Configuration | Half Bridge (4) |
| Interface | Parallel | Technology | - |
| Step Resolution | - | Applications | General Purpose |
| Current - Output | 600mA | Voltage - Supply | 4.5V ~ 36V |
| Voltage - Load | 4.5V ~ 36V | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PowerDIP | ||
| Highlight | 4.5V Power Management ICs,36V Power Management ICs,L293D |
||
Product Description

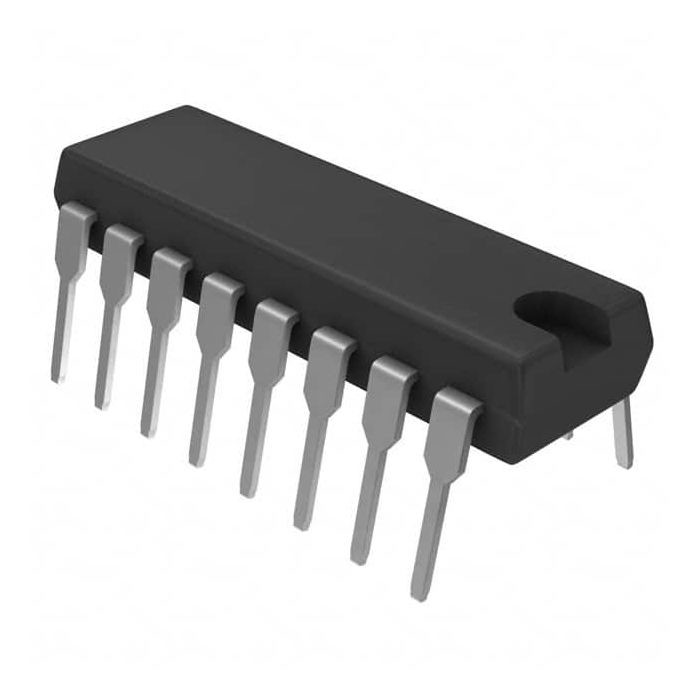

L293D IC MTRDRV BIPLR 4.5-36V 16PWRDIP STMicroelectronics
Product Details
DESCRIPTION
The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
This device is suitable for use in switching applications at frequencies up to 5 kHz.
The L293D is assembled in a 16 lead plastic packaage which has 4 center pins connected to gether and used for heatsinking The L293DD is assembled in a 20 lead surface mount which has 8 center pins connected to gether and used for heatsinking.
■ 600mA OUTPUT CURRENT CAPABILITY PER CHANNEL
■ 1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL■ ENABLE FACILITY
■ OVERTEMPERATURE PROTECTION
■ LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)
■ INTERNAL CLAMP DIODES
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | IC Chips |
| Series | L293D |
| Product | Stepper Motor Controllers / Drivers |
| Type | H-Bridge |
| Packaging | Tube |
| Mounting-Style | Through Hole |
| Operating-Temperature-Range | - 40 C to + 150 C |
| Package-Case | 16-DIP (0.300", 7.62mm) |
| Technology | - |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Mounting-Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Applications | General Purpose |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 36 V |
| Supplier-Device-Package | 16-PowerDIP |
| Number-of-Outputs | 2 Outputs |
| Current-Output | 600mA |
| Output-Configuration | Half Bridge (4) |
| Voltage-Load | 4.5 V ~ 36 V |
| Motor-Type-Stepper | Bipolar |
| Motor-Type-AC-DC | Brushed DC |
| Resolution | - |
| Operating-Supply-Voltage | 4.5 V to 36 V |
| Operating-Supply-Current | 2 mA |
| Output-Current | 600 mA |
| Package-Case | PowerDIP-16 |
Descriptions
Bipolar Motor Driver Parallel 16-PowerDIP
4-Channel Motor Driver 24V 16-Pin Power PDIP Tube
Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel
