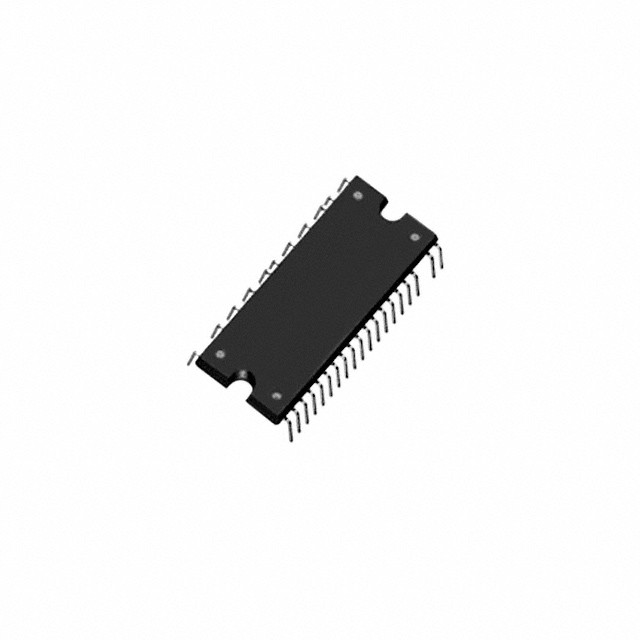

SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc.
| Brand Name | Sanken Electric USA Inc. |
|---|---|
| Model Number | SIM6822M |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type - Stepper | - | Motor Type - AC, DC | Brushless DC (BLDC) |
|---|---|---|---|
| Function | Driver | Output Configuration | Half Bridge (3) |
| Interface | Logic | Technology | IGBT |
| Step Resolution | - | Applications | Home Appliance |
| Current - Output | 5A | Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 600V (Max) | Operating Temperature | -20°C ~ 100°C (TA) |
| Mounting Type | Through Hole | Package / Case | 40-DIP (0.657", 16.70mm), 29 Leads |
| Supplier Device Package | 40-DIP LF2971 |
Product Description
SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc.
Product Details
Description
The SIM6822M are high voltage 3-phase motor driver ICs in which transistors, a pre-driver IC (MIC), and bootstrap circuits (diodes and resistors) are highly integrated.
Features
●Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)
●CMOS-compatible Input (3.3 V or 5 V)
●Bare Lead Frame: Pb-free (RoHS Compliant)
●Isolation Voltage: 1500 V (for 1 min)UL-recognized Component (File No.: E118037) (SIM6880M UL Recognition Pending)
●Fault Signal Output at Protection Activation (FO Pin)
●High-side Shutdown Signal Input (SD Pin)
●Protections Include:
Overcurrent Limit (OCL): Auto-restart
Overcurrent Protection (OCP): Auto-restart
Undervoltage Lockout for Power Supply
High-side (UVLO_VB): Auto-restart
Low-side (UVLO_VCC): Auto-restart
Thermal Shutdown (TSD): Auto-restart
Application
●Refrigerator Compressor Motor
●Fan Motor and Pump Motor for Washer and Dryer
●Fan Motor for Air Conditioner, Air Purifier, and Electric Fan
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Sanken |
| Product Category | Full, Half-Bridge Drivers |
| Series | - |
| Packaging | Tube |
| Package-Case | 40-DIP (0.657", 16.70mm) 29 Leads |
| Technology | IGBT |
| Operating-Temperature | -20°C ~ 100°C (TA) |
| Mounting-Type | Through Hole |
| Features | Bootstrap Circuit |
| Applications | AC Motors |
| Interface | Logic |
| Voltage-Supply | 13.5 V ~ 16.5 V |
| Supplier-Device-Package | 40-DIP LF2971 |
| Rated Output Current | 5A |
| Fault-Protection | Current Limiting, Over Temperature, UVLO |
| Output-Configuration | Half Bridge (3) |
| Load-Type | Inductive |
| Rds-On-Typ | - |
| Current-Peak-Output | 7.5A |
| Voltage-Load | 400V (Max) |
Descriptions
Half Bridge (3) Driver AC Motors IGBT 40-DIP LF2971
Triple Half Bridge Motor Driver 300V 30-Pin DIP Module
