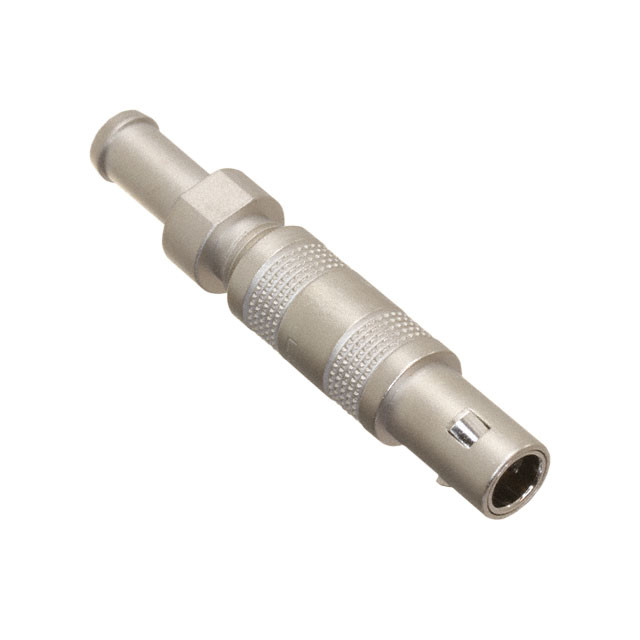

FFA.00.250.NTAC31Z CONN NIMCAMA PLG STR 50OHM SOLDR LEMO
| Brand Name | LEMO |
|---|---|
| Model Number | FFA.00.250.NTAC31Z |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | Connector Style | NIM-CAMAC CD/N 549 |
|---|---|---|---|
| Connector Type | Plug, Male Pin | Contact Termination | Solder |
| Shield Termination | Clamp | Impedance | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Cable Group | RG-174A | Fastening Type | Push-Pull |
| Frequency - Max | - | Number Of Ports | 1 |
| Housing Color | Silver | Ingress Protection | IP50 - Dust Protected |
| Center Contact Material | Brass |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| FFA.00.250.NTAC31Z | CONN NIMCAMA PLG STR 50OHM SOLDR | |
| FFA.00.250.NTAC22Z | CONN NIMCAMA PLG STR 50OHM SOLDR | |
| FFA.00.250.NTAC27Z | CONN NIMCAMA PLG STR 50OHM SOLDR | |
| FFA.00.250.NTAC29Z | CONN NIMCAMA PLG STR 50OHM SOLDR | |
| FFA.00.250.NTAC15Z | CONN NIMCAMA PLG STR 50OHM SOLDR | |
| FFA.00.250.NTAC17Z | CONN NIMCAMA PLG STR 50OHM SOLDR |
Product Description
Product Details
[LEMO]
LEMO unipole and multipole connectors
This catalogue gives the complete description of LEMO unipole and multipole type connectors. The LEMO manufacturing programme has been extended to almost 40 series divided into 7 product families with specific mating and environmental characteristics. Each series includes a wide variety of plug, socket, coupler and bridge plug models, available in contact configurations adapted to all round cables, including up to 106 conductors, and a maximum diameter of 30 mm.
Watertight and vacuumtight models are also available. Since LEMO connectors are perfectly screened and designed to guarantee very low resistance to shell electrical continuity, they are particularly adapted to applications where electromagnetic compatibility (EMC) is important.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | LEMO |
| Product Category | RF Coaxial Connectors |
| Series | 0 |
| Product | Connectors |
| Packaging | Bulk |
| Mounting-Style | Cable |
| Current-Rating | 4 A |
| Termination-Style | Solder |
| Voltage-Rating | 2100 VAC 3000 VDC |
| Impedance | 50 Ohm |
| Mounting-Type | Free Hanging (In-Line) |
| Features | - |
| Ingress Protection Rating | - |
| Frequency-Max | - |
| Connector-Type | Plug, Male Pin |
| Shell-Plating | Nickel |
| Contact-Termination | Solder |
| Connector-Style | NIM-CAMAC CD/N 549 |
| Fastening-Type | Push-Pull |
| Housing-Color | Silver |
| Cable-Group | RG-174A |
| Shield-Termination | Clamp |
| Number-of-Contacts | 1 Contact |
| Contact-Plating | Gold |
| Contact-Gender | Pin (Male) |
| Shell-Material | Metal |
Descriptions
NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
Circular Push Pull Connectors FFA Str Plug 00 Series 1 Coax
