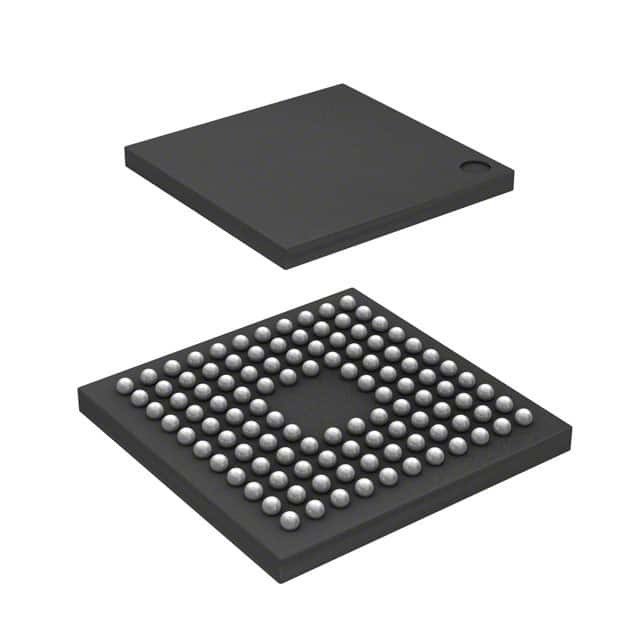

R4F2153VBR25KDV IC MCU 16BIT 512KB FLSH 112LFBGA Renesas Electronics America Inc

  • R4F2153VBR25KDV IC MCU 16BIT 512KB FLSH 112LFBGA Renesas Electronics America Inc
Brand Name Renesas Electronics America Inc
Model Number R4F2153VBR25KDV
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Processor H8S/2600 Core Size 16-Bit
Speed 25MHz Connectivity I²C, LPC, SCI
Peripherals POR, PWM, WDT Number Of I/O 53
Program Memory Size 512KB (512K X 8) Program Memory Type FLASH
EEPROM Size - RAM Size 40K X 8
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V Data Converters A/D 8x10b
Oscillator Type External Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount Package / Case 112-LFBGA
Supplier Device Package 112-LFBGA (10x10)
Highlight

MCU Memory Control Unit

,

MCU Micro Control Unit

,

Microcontroller Integrated Circuit
You can tick the products you need and communicate with us in the message board.
Part Number Description
R4F2153VBR25KDV IC MCU 16BIT 512KB FLSH 112LFBGA
DF2238RBR13V IC MCU 16BIT 256KB FLSH 112LFBGA
DF70835AN80BGV IC MCU 32BIT 512KB FLSH 112LFBGA
DF2238RBR13WV IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215RBR24V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215RUBR24V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215UBR16V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2218BR24V IC MCU 16BIT 128KB FLSH 112LFBGA
DF2218UBR24V IC MCU 16BIT 128KB FLSH 112LFBGA
DF70834AD80BGV IC MCU 32BIT 256KB FLSH 112LFBGA
DF70835AD80BGV IC MCU 32BIT 512KB FLSH 112LFBGA
DF2215CUBR24V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2217CUBR24V IC MCU 16BIT 64KB FLASH 112LFBGA
DF2218CUBR24V IC MCU 16BIT 128KB FLSH 112LFBGA
DF2215CUBR24WV IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215TBR24V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215TUBR24V IC MCU 16BIT 256KB FLSH 112LFBGA
DF2215BR16V IC MCU 16BIT 256KB FLASH 112BGA
DF2218CUBR24WV IC MCU 32BIT 128KB FLSH 112LFBGA
DF2217CUBR24WV IC MCU 32BIT 64KB FLASH 112LFBGA
DS70830AD80BGV IC MCU 32BIT ROMLESS 112LFBGA
Leave a Message
Part Number Description
Product Description

Product Details



Overview

• High-speed H8S/2600 central processing unit with an internal 16-bit architecture
Upward-compatible with H8/300 and H8/300H CPUs on an object level
Sixteen 16-bit general registers
69 basic instructions
Multiplication and accumulation instructions
• Various peripheral functions
Data transfer controller (DTC)
14-bit PWM timer (PWMX)
16-bit free-running timer (FRT)
8-bit timer (TMR)
Watchdog timer (WDT)
Asynchronous or clocked synchronous serial communication interface (SCI)
CRC operation circuit (CRC)
I2C bus interface (IIC)
LPC interface (LPC)
10-bit A/D converter
Boundary scan (JTAG)
Clock pulse generator
• On-chip memory R4F2153
• General I/O ports
I/O pins: 65
Input-only pins: 9
• Supports various power-down states
• Compact package PLBG0112GA-A



Specifications

Attribute Attribute Value
Manufacturer Renesas Electronics America
Product Category Microcontrollers
Series H8R H8S/2100
Packaging Tray
Package-Case 112-LFBGA
Operating-Temperature -40°C ~ 85°C (TA)
Supplier-Device-Package 112-LFBGA (10x10)
Number-of-I-O 53 I/O
Speed 25MHz
EEPROM-Size -
Core-Processor H8S/2600
RAM-Size 40K x 8
Program Memory FLASH
Peripherals POR, PWM, WDT
Connectivity I2C, LPC, SCI
Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
Core-Size 16-Bit
Program-Memory-Size 512KB (512K x 8)
Data-Converters A/D 8x10b
Oscillator-Type External

Descriptions

H8S/2600 H8? H8S/2100 Microcontroller IC 16-Bit 25MHz 512KB (512K x 8) FLASH 112-LFBGA (10x10)
MCU 16-bit CISC 512KB Flash 3.3V 112-Pin LFBGA Tray
