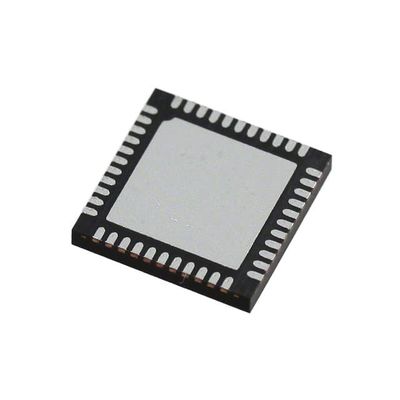

73S1209F-44IM/F IC MCU 8BIT 32KB FLASH 44QFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | 73S1209F-44IM/F |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | 8-Bit | Core Size | 24MHz |
|---|---|---|---|
| Speed | I²C, SmartCard, UART/USART | Connectivity | LED, POR, WDT |
| Peripherals | 9 | Number Of I/O | 32KB (32K X 8) |
| Program Memory Size | FLASH | Program Memory Type | - |
| EEPROM Size | 2K X 8 | RAM Size | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - | Data Converters | Internal |
| Oscillator Type | -40°C ~ 85°C (TA) | Operating Temperature | Surface Mount |
| Mounting Type | 44-VFQFN Exposed Pad | Package / Case | 44-QFN (7x7) |
| Highlight | MCU Memory Control Unit,MCU Micro Control Unit,Microcontroller Integrated Circuit |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| 73S1209F-44IM/F | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1209F-44IM/F/P | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1209F-44IMR/F | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1209F-44IMR/F/P | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44IM/F | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44IM/F/P | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44IMR/F | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44IMR/F/P | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1215F-44IM/F | IC MCU 8BIT 64KB FLASH 44QFN | |
| 73S1215F-44IM/F/P | IC MCU 8BIT 64KB FLASH 44QFN | |
| 73S1215F-44IMR/F/P | IC MCU 8BIT 64KB FLASH 44QFN | |
| Z8F0880QN020EG | IC MCU 8BIT 8KB FLASH 44QFN | |
| Z8F0880QN020SG | IC MCU 8BIT 8KB FLASH 44QFN | |
| Z8F1680QN020EG | IC MCU 8BIT 16KB FLASH 44QFN | |
| Z8F1680QN020SG | IC MCU 8BIT 16KB FLASH 44QFN | |
| Z8F2480QN020EG | IC MCU 8BIT 24KB FLASH 44QFN | |
| Z8F2480QN020SG | IC MCU 8BIT 24KB FLASH 44QFN | |
| 73S1209F-44M/F/PD | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1209F-44MR/F/PD | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44M/F/PC | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1210F-44M/F/PD | IC MCU 8BIT 32KB FLASH 44QFN | |
| 73S1215F-44MR/F/PC | IC MCU 8BIT 64KB FLASH 44QFN | |
| 73S1210F-44MR/F/PC | IC MCU 8BIT 32KB FLASH 44QFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Microcontrollers |
| Series | 73S12xx |
| Packaging | Tube |
| Unit-Weight | 0.013051 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 44-VFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 44-QFN-EP (7x7) |
| Number-of-I-O | 9 I/O |
| Speed | 24MHz |
| EEPROM-Size | - |
| Core-Processor | 80515 |
| RAM-Size | 2K x 8 |
| Program Memory | FLASH |
| Peripherals | LED, POR, WDT |
| Connectivity | I2C, SmartCard, UART/USART |
| Voltage-Supply-Vcc-Vdd | 2.7 V ~ 5.5 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | 32KB (32K x 8) |
| Data-Converters | - |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2.7 V to 3.6 V 4.75 V to 5.5 V |
| Interface-Type | I2C UART |
| Core | 80515 |
| Processor-Series | 73S1209F |
| Part-#-Aliases | 73S1209F 90-W1209+XF1 |
| Data-Bus-Width | 8 bit |
| Package-Case | QFN-44 |
| Maximum-Clock-Frequency | 24 MHz |
| Data-RAM-Size | 2 kB |
| Number-of-Timers-Counters | 3 Timer |
| ADC-Resolution | No ADC |
| Data-RAM-Type | RAM |
Descriptions
80515 73S12xx Microcontroller IC 8-Bit 24MHz 32KB (32K x 8) FLASH 44-QFN-EP (7x7)
8-bit Microcontrollers - MCU Contained 80515-SoC Serial Hst Interface
