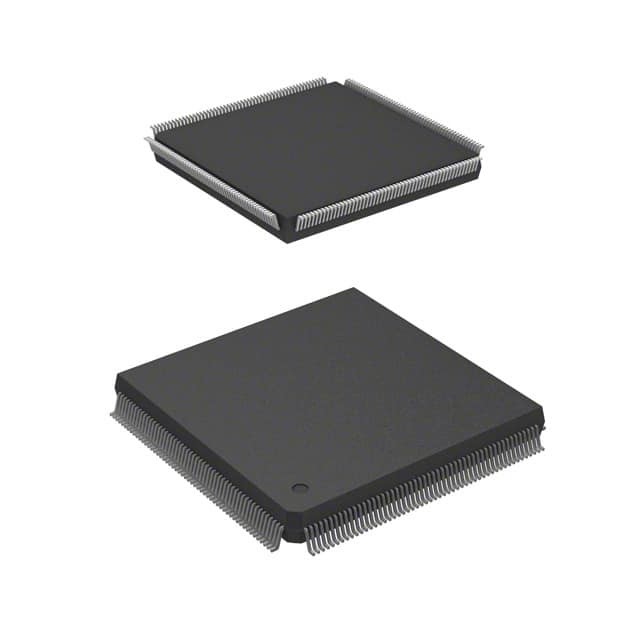

MCF53013CQT240 IC MCU 32BIT ROMLESS 208LQFP Freescale Semiconductor
| Brand Name | Freescale Semiconductor |
|---|---|
| Model Number | MCF53013CQT240 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | Coldfire V3 | Core Size | 32-Bit Single-Core |
|---|---|---|---|
| Speed | 240MHz | Connectivity | EBI/EMI, Ethernet, I²C, Memory Card, SPI, SSI, UART/USART, USB, USB OTG |
| Peripherals | DMA, PWM, WDT | Number Of I/O | 61 |
| Program Memory Size | - | Program Memory Type | ROMless |
| EEPROM Size | - | RAM Size | 128K X 8 |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.6V | Data Converters | - |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 208-LQFP |
| Supplier Device Package | 208-LQFP (28x28) | ||
| Highlight | MCU Memory Control Unit,MCU Micro Control Unit,Microcontroller Integrated Circuit |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCF53013CQT240 | IC MCU 32BIT ROMLESS 208LQFP | |
| ELANSC310-25VC | IC MCU 32BIT ROMLESS 208TQFP | |
| ELANSC300-25KI | IC MCU 32BIT ROMLESS 208PQFP | |
| MCF53011CQT240 | IC MCU 32BIT ROMLESS 208TQFP | |
| MCF53012CQT240 | IC MCU 32BIT ROMLESS 208TQFP | |
| ELANSC300-33VC | IC MCU 32BIT ROMLESS 208TQFP | |
| HD6417750SF167IV | IC MCU 32BIT ROMLESS 208HQFP | |
| MCF5407CAI162 | IC MCU 32BIT ROMLESS 208FQFP | |
| MCF5407CAI220 | IC MCU 32BIT ROMLESS 208FQFP | |
| MCF5407CAI162 | IC MCU 32BIT ROMLESS 208FQFP | |
| MCF5307CAI90B | IC MCU 32BIT ROMLESS 208FQFP | |
| MCF53010CQT240 | IC MCU 32BIT ROMLESS 208TQFP | |
| HD6417615ARF | IC MCU 32BIT ROMLESS 208LQFP | |
| HD6417622F80V | IC MCU 32BIT ROMLESS | |
| HD6417707RF60A | IC MCU 32-BIT FLASH | |
| HD6417750SF200V | IC MCU 32BIT ROMLESS 208HQFP | |
| HD6417750SVF133V | IC MCU 32BIT ROMLESS 208HQFP | |
| HD6417750F167V | IC MCU 32BIT ROMLESS 208HQFP | |
| HD6417750RF200V | IC MCU 32BIT ROMLESS 208HQFP | |
| HD6417750SF167I | IC MCU 32BIT ROMLESS 208HQFP | |
| MCF5307AI66B | IC MCU 32BIT ROMLESS 208FQFP | |
| HD6417750RF240V | IC MCU 32BIT ROMLESS 208HQFP | |
| LPC4357JBD2088 | IC MCU 32BIT 1MB FLASH 208LQFP | |
| HD6417750F167 | IC MCU 32BIT ROMLESS 208HQFP |
Product Description
Product Details
Features
• Version 3 ColdFire® core with EMAC• Up to 211 Dhrystone 2.1 MIPS @ 240 MHz
• 16 KBytes unified instruction/data cache
• 128 KBytes internal SRAM with standby power supply support
• Crossbar switch technology (XBS) for concurrent access to peripherals or RAM from multiple bus masters
• Enhanced Secure Digital Host Controller (eSDHC)
– Supports CE-ATA, SD Memory, miniSD Memory, SDIO, miniSDIO, SD Combo, MMC, MMC plus, MMC 4x, and MMC RS cards
• Two ISO7816 smart card interfaces
• IC identification module
• Voice-band audio codec with integrated speaker, microphone, headphone, and handset amplifiers
• 16- or 32-bit SDR, 16-bit DDR/mobile-DDR SDRAM controller
• USB 2.0 On-the-Go controller
• USB host controller
• 2 10/100 Ethernet MACs
• Coprocessor for acceleration of the DES, 3DES, AES, MD5, and SHA-1 algorithms
• Random number generator
• 16-channel DMA controller
• Synchronous serial interface
• 4 periodic interrupt timers
• 4 32-bit timers with DMA support
• Real-time clock (RTC) module with standby support
• DMA-supported serial peripheral interface (DSPI)
• 3 UARTs
• I2C bus interface
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / N✖P |
| Product Category | IC Chips |
| Packaging | Tray |
| Unit-Weight | 0.088700 oz |
| Mounting-Style | SMD/SMT |
| Tradename | ColdFire |
| Memory-Type | L1 Cache SRAM |
| Bus width | 1 Core |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.08 V to 1.32 V |
| Interface-Type | Ethernet I2C SPI UART USB |
| Core | ColdFire V3 |
| Processor-Series | ColdFire |
| Data-Bus-Width | 32 bit |
| Package-Case | LQFP-208 |
| Maximum-Clock-Frequency | 240 MHz |
| L1-Cache-Instruction-Memory | 16 kB |
| L1-Cache-Data-Memory | 16 kB |
| Data-RAM-Size | 128 kB |
| I-O-Voltage | 3.3 V |
| Number-of-Timers-Counters | 4 x 32 bit |
| Watchdog-Timers | Watchdog Timer |
Descriptions
Microprocessors - MPU LONGJING C&I CFV3 VOIP+S
