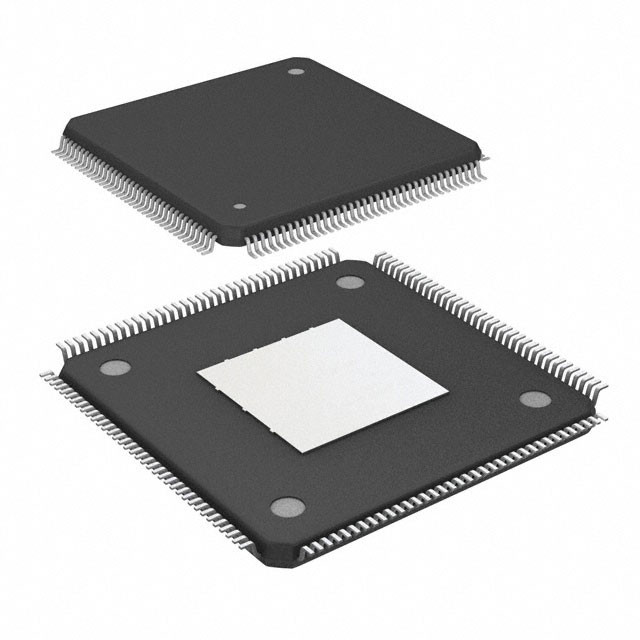

XMC4500F144K1024ACXQMA1 IC MCU 32BIT 1MB FLASH 144LQFP Infineon Technologies
| Brand Name | Infineon Technologies |
|---|---|
| Model Number | XMC4500F144K1024ACXQMA1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | ARM® Cortex®-M4 | Core Size | 32-Bit Single-Core |
|---|---|---|---|
| Speed | 120MHz | Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SPI, UART, USB |
| Peripherals | DMA, I²S, LED, POR, PWM, WDT | Number Of I/O | 91 |
| Program Memory Size | 1MB (1M X 8) | Program Memory Type | FLASH |
| EEPROM Size | - | RAM Size | 160K X 8 |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 3.63V | Data Converters | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 144-LQFP Exposed Pad |
| Supplier Device Package | PG-LQFP-144-13 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| XMC4500F144K1024ACXQMA1 | IC MCU 32BIT 1MB FLASH 144LQFP | |
| XMC4500F144F1024ACXQMA1 | IC MCU 32BIT 1MB FLASH 144LQFP | |
| TC264D40F200NBCKXUMA2 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| TC264D40F200WBCKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| XE167FM72F80LRABKXUMA1 | IC MCU 16BIT 576KB FLASH 144LQFP | |
| XMC4500F144F768ACXQMA1 | IC MCU 32BIT 768KB FLASH 144LQFP | |
| TC264D40F200WBBKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| XMC4500F144K768ACXQMA1 | IC MCU 32BIT 768KB FLASH 144LQFP | |
| XC2788X136F128LRAAKXUMA1 | IC MCU 16/32BIT 1.06MB 144LQFP | |
| XC2289I136F128LRAAKXUMA1 | IC MCU 16/32BIT 1MB FLSH 144LQFP | |
| TC264DA40F200WBBKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| XC2288H200F100LABKXUMA1 | IC MCU 16/32B 1.6MB FLSH 144LQFP | |
| XC2289H200F100LABKXUMA1 | IC MCU 16/32B 1.6MB FLSH 144LQFP | |
| XC2787X200F100LABKXUMA1 | IC MCU 16/32B 1.6MB FLSH 144LQFP | |
| TC264D40F200NBCKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| TC264D40F200NBCLXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| TC364DP64F300WAAKXUMA1 | IC MCU 32BIT 4MB FLASH 144LQFP | |
| TC264DA40F200NBCKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| TC264DA40F200WBCKXUMA1 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264DE-40F200N BC | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264DA-40F200N BC | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264DC-40F200W BB | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264DA-40F200W BB | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264D-40F200W BB | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAK-TC264DC-40F200W BC | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| TC264DA40F200WBBKXUMA2 | IC MCU 32BIT 2.5MB FLASH 144LQFP | |
| SAL-TC264D-40F200W BB | IC MCU 32BIT 2.5MB FLASH 144LQFP |
Product Description
Product Details
The XMC4500 devices are members of the XMC4000 Family of microcontrollers based on the ARM Cortex-M4 processor core. The XMC4000 is a family of high performance and energy efficient microcontrollers optimized for Industrial Connectivity, Industrial Control, Power Conversion, Sense & Control.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon |
| Product Category | Microcontrollers |
| Series | XMC4000 |
| Product | MCU |
| Packaging | Tray |
| Unit-Weight | 0.045518 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 144-LQFP Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Supplier-Device-Package | 144-LQFP (20x20) |
| Number-of-I-O | 91 I/O |
| Speed | 120MHz |
| EEPROM-Size | - |
| Core-Processor | ARMR CortexR-M4 |
| RAM-Size | 160K x 8 |
| Program Memory | FLASH |
| Peripherals | DMA, I2S, LED, POR, PWM, WDT |
| Connectivity | CAN, EBI/EMI, Ethernet, I2C, LIN, SPI, UART, USB |
| Voltage-Supply-Vcc-Vdd | 3.13 V ~ 3.63 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 1MB (1M x 8) |
| Data-Converters | A/D 32x12b, D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 3.3 V |
| Interface-Type | CAN I2C I2S LIN SPI UART USB |
| Core | ARM Cortex M4 |
| Processor-Series | XMC4000 |
| Part-#-Aliases | AC SP001093082 XMC4500-F144K1024 |
| Data-Bus-Width | 32 bit/16 bit |
| Supply-Voltage-Max | 3.63 V |
| Supply-Voltage-Min | 3.13 V |
| Package-Case | LQFP-144 |
| Maximum-Clock-Frequency | 120 MHz |
| Number-of-ADC-Channels | 32 Channel |
| Input/output | 91 I/O |
| Data-RAM-Size | 160 kB |
| Data-ROM-Size | 16 kB |
| Number-of-Timers-Counters | 26 x 16 bit |
| Watchdog-Timers | Watchdog Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
| Data-ROM-Type | ROM |
| DAC-Resolution | 12 bit |
Descriptions
ARM? Cortex?-M4 XMC4000 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 144-LQFP (20x20)
MCU 32-bit ARM Cortex M4 RISC 1MB Flash 3.3V 144-Pin LQFP EP Tray
ARM Microcontrollers - MCU XMC4000
