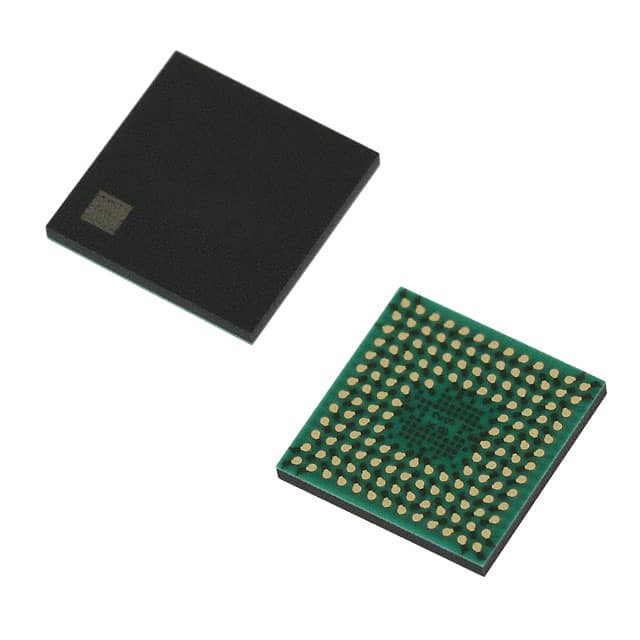

R4F2113NLG#U0 IC MCU 16BIT 128KB FLSH 145TFLGA Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | R4F2113NLG#U0 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | H8S/2000 | Core Size | 16-Bit |
|---|---|---|---|
| Speed | 20MHz | Connectivity | I²C, LPC, SCI |
| Peripherals | POR, PWM, WDT | Number Of I/O | 114 |
| Program Memory Size | 128KB (128K X 8) | Program Memory Type | FLASH |
| EEPROM Size | - | RAM Size | 12K X 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | Data Converters | A/D 12x10b |
| Oscillator Type | Internal | Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 145-TFLGA |
| Supplier Device Package | 145-TFLGA (9x9) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| R4F2113NLG#U0 | IC MCU 16BIT 128KB FLSH 145TFLGA | |
| DF2117RVLP20DHV | IC MCU 16BIT 160KB FLSH 145TFLGA | |
| R5F56216BDLE#U0 | IC MCU 32BIT 256KB FLSH 145TFLGA | |
| R5F56217BDLE#U0 | IC MCU 32BIT 384KB FLSH 145TFLGA | |
| R5F56218BDLE#U0 | IC MCU 32BIT 512KB FLSH 145TFLGA | |
| R5F562N7ADLE#U0 | IC MCU 32BIT 384KB FLSH 145TFLGA | |
| R5F562N7BDLE#U0 | IC MCU 32BIT 384KB FLSH 145TFLGA | |
| R5F562N8ADLE#U0 | IC MCU 32BIT 512KB FLSH 145TFLGA | |
| R5F562N8BDLE#U0 | IC MCU 32BIT 512KB FLSH 145TFLGA | |
| R5F61665N50LGV | IC MCU 32BIT 512KB FLSH 145TFLGA | |
| R5F61662N50LGV | IC MCU 32BIT 384KB FLSH 145TFLGA | |
| R5F61665D50LGV | IC MCU 32BIT 512KB FLSH 145TFLGA | |
| DF2378BVLP35V | IC MCU 16BIT 512KB FLSH 145TFLGA | |
| DF2370RVLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2370VLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2371RVLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2371VLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2372RVLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2372VLP34V | IC MCU 16BIT 256KB FLSH 145TFLGA | |
| DF2374RVLP34V | IC MCU 16BIT 384KB FLSH 145TFLGA | |
| DF2374VLP34V | IC MCU 16BIT 384KB FLSH 145TFLGA | |
| DF2378RVLP34V | IC MCU 16BIT 512KB FLSH 145TFLGA | |
| DF2117VLP20V | IC MCU 16BIT 160KB FLSH 145TFLGA | |
| R5F61622N50LGV | IC MCU 32BIT 256KB FLSH 145TFLGA | |
| DF2117RVLP20HV | IC MCU 16BIT 160KB FLSH 145TFLGA | |
| DF2117VLP20HV | IC MCU 16BIT 160KB FLSH 145TFLGA |
Product Description
Product Details
Features
The core of each product in the H8S/2112 Group of CISC (complex instruction set computer) microcomputers is an H8S/2000 CPU, which has an internal 16-bit architecture. The H8S/2000 CPU provides upward-compatibility with the CPUs of other Renesas Technology-original microcomputers: H8/300, H8/300H, and H8S.
As peripheral functions, each LSI of the group includes a serial communication interface with FIFO, an I2C bus interface, an A/D converter, and various types of timers. Together, the modules realize low-cost system configurations. The power consumption of these modules is kept down dynamically by power-down modes. The on-chip ROM is a flash memory (F-ZTATTM*) with a capacity of 96 Kbytes.
Applications
Examples of the applications of this LSI include PC peripheral equipment, office automation equipment, and industrial equipment.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas Electronics America |
| Product Category | Microcontrollers |
| Series | H8R H8S/2100 |
| Packaging | Tray |
| Package-Case | 145-TFLGA |
| Operating-Temperature | -20°C ~ 75°C (TA) |
| Supplier-Device-Package | 145-TFLGA (9x9) |
| Number-of-I-O | 114 I/O |
| Speed | 20MHz |
| EEPROM-Size | - |
| Core-Processor | H8S/2000 |
| RAM-Size | 12K x 8 |
| Program Memory | FLASH |
| Peripherals | POR, PWM, WDT |
| Connectivity | I2C, LPC, SCI |
| Voltage-Supply-Vcc-Vdd | 3 V ~ 3.6 V |
| Core-Size | 16-Bit |
| Program-Memory-Size | 128KB (128K x 8) |
| Data-Converters | A/D 12x10b |
| Oscillator-Type | Internal |
Descriptions
H8S/2000 H8? H8S/2100 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 145-TFLGA (9x9)
MCU 3V 128K PB-FREE PTLG0145JB
