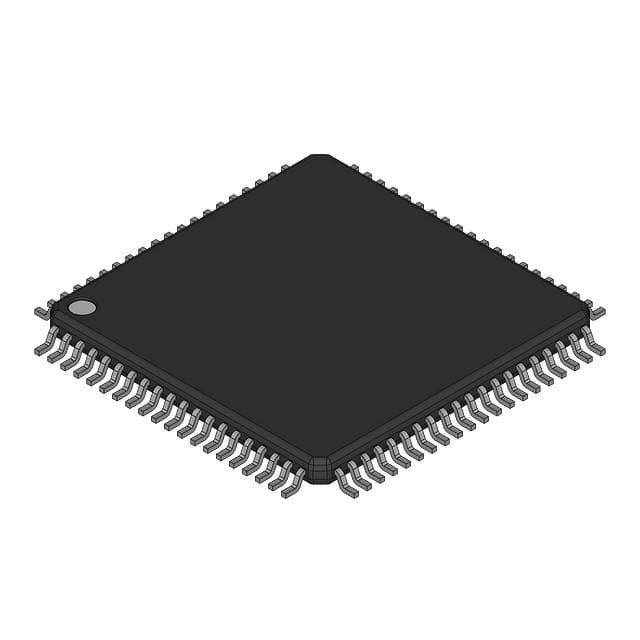

SAB-C161K-LM HA IC MCU 16BIT ROMLESS 80MQFP Infineon Technologies

Brand Name Infineon Technologies
Model Number SAB-C161K-LM HA
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Processor C166 Core Size 16-Bit
Speed 20MHz Connectivity EBI/EMI, SPI, UART/USART
Peripherals POR, PWM, WDT Number Of I/O 63
Program Memory Size - Program Memory Type ROMless
EEPROM Size - RAM Size 1K X 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V Data Converters -
Oscillator Type External Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Surface Mount Package / Case 80-QFP
Supplier Device Package P-MQFP-80-1
You can tick the products you need and communicate with us in the message board.
Part Number Description
DF2612FA20L IC MCU 16BIT 128KB FLASH 80QFP
SAF-161O-LMHA LEGACY 16-BIT MCU
SAB-C161K-LM HA IC MCU 16BIT ROMLESS 80MQFP
D13004F16V MCU H8/300H / H8/3002
SABC161OL25MHABXUMA1 LEGACY 16-BIT MCU
SAB-C161OL25MHABXUMA1 LEGACY 16 BIT MICROCONTROLLER
M37735EHBFP#D6 IC MCU 16BIT 124KB OTP
DF3022F18V 16-BIT, H8/300H CPU
M30290FCTHP#B3A 16-BIT, FLASH, M16C CPU
M30290FCTHP#TAA 16-BIT, FLASH, M16C CPU
D73032F18V MCU H8/300H / H8/3032
DF2615FA24J IC MCU 16BIT 64KB FLASH 80QFP
DF2132RFA20J IC MCU 16BIT 64KB FLASH 80QFP
DF2134AFA20JG IC MCU 16BIT 128KB FLASH 80QFP
DF2138AFA20JG IC MCU 16BIT 128KB FLASH 80QFP
M37911FGCHP IC MCU 16BIT 120KB FLASH 80LQFP
M37702S1BFP#DC MCU, 16-BIT
DF2612FA20K IC MCU 16BIT 128KB FLASH 80QFP
DF2134AFA20LG IC MCU 16BIT 128KB FLASH 80QFP
MC9S12C64CFUE IC MCU 16BIT 64KB FLASH 80QFP
HD64738024WIV IC MCU 8BIT 32KB OTP 80TQFP
SAK-C164CI-8RM CA+ SAK-C164CI-8RM CA+ - LEGACY 16-B
MC9S12D64MFUE IC MCU 16BIT 64KB FLASH 80QFP
MK51DX256CLK7 IC MCU 32BIT 256KB FLASH 80FQFP
HD64F38024RFV IC MCU 8BIT 32KB FLASH 80QFP
M30290FCVHP#U3A MICROCONTROLLER, 16-BIT, FLASH,
MC9S12XA256VAA IC MCU 16BIT 256KB FLASH 80QFP
Leave a Message
Part Number Description
Product Description

Product Details



Introduction

The C161K/O is a derivative of the Infineon C166 Family of full featured single-chip CMOS microcontrollers. It combines high CPU performance (up to 12.5 million instructions per second) with peripheral functionality and enhanced IO-capabilities. The C161K/O is especially suited for cost sensitive applications.





• High Performance 16-bit CPU with 4-Stage Pipeline

– 80 ns Instruction Cycle Time at 25 MHz CPU Clock
– 400 ns Multiplication (16 × 16 bit), 800 ns Division (32 / 16 bit)
– Enhanced Boolean Bit Manipulation Facilities
– Additional Instructions to Support HLL and Operating Systems
– Register-Based Design with Multiple Variable Register Banks
– Single-Cycle Context Switching Support
– 16 MBytes Total Linear Address Space for Code and Data
– 1024 Bytes On-Chip Special Function Register Area
• 16-Priority-Level Interrupt System with 20 Sources, Sample-Rate down to 40 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via
Peripheral Event Controller (PEC)
• Clock Generation via prescaler or via direct clock input
• On-Chip Memory Modules
– 2 KBytes On-Chip Internal RAM (IRAM) on C161O,
1 KByte IRAM on C161K
• On-Chip Peripheral Modules
– Two Multi-Functional General Purpose Timer Units with 5 Timers on C161O,
one Timer Unit with 3 Timers on C161K
– Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)
• Up to 4 MBytes External Address Space for Code and Data
– Programmable External Bus Characteristics for Different Address Ranges
– Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit
Data Bus Width
– Four Programmable Chip-Select Signals on C161O,
two Chip-Select Signals on C161K
• Idle and Power Down Modes
• Programmable Watchdog Timer
• Up to 63 General Purpose I/O Lines
• Power Supply: the C161K/O can operate from a 5 V or a 3 V power supply
• Supported by a Large Range of Development Tools like C-Compilers,
Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers,
Simulators, Logic Analyzer Disassemblers, Programming Boards
• On-Chip Bootstrap Loader
• 80-Pin MQFP Package (0.65 mm pitch)



Specifications

Attribute Attribute Value
Manufacturer Infineon
Product Category Microcontrollers
Series SAxC161K
Product MCU
Packaging Reel
Mounting-Style SMD/SMT
Program Memory ROM
Maximum Operating Temperature + 70 C
Operating temperature range 0 C
Operating-Supply-Voltage 5 V
Interface-Type 1xASC 1xSSC
Core C166
Part-#-Aliases B161KLMHAXT C161KLMHABXUMA1 SP000011585
Data-Bus-Width 16 bit
Package-Case MQFP-80
Maximum-Clock-Frequency 20 MHz
Input/output 63 I/O
Data-RAM-Size 1 kB
Number-of-Timers-Counters 3 Timer
ADC-Resolution No ADC
