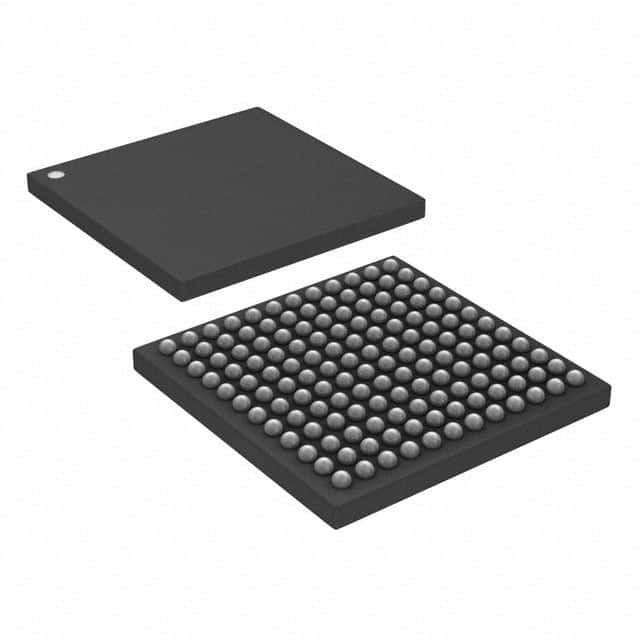

STM32F103ZDH6 IC MCU 32BIT 384KB FLSH 144LFBGA STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | STM32F103ZDH6 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | ARM® Cortex®-M3 | Core Size | 32-Bit Single-Core |
|---|---|---|---|
| Speed | 72MHz | Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT | Number Of I/O | 112 |
| Program Memory Size | 384KB (384K X 8) | Program Memory Type | FLASH |
| EEPROM Size | - | RAM Size | 64K X 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | Data Converters | A/D 21x12b; D/A 2x12b |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 144-LFBGA |
| Supplier Device Package | 144-LFBGA (10x10) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| STM32F103ZDH6 | IC MCU 32BIT 384KB FLSH 144LFBGA | |
| STM32F103ZGH6 | IC MCU 32BIT 1MB FLASH 144BGA | |
| STM32F103ZGH6TR | IC MCU 32BIT 1MB FLASH 144LFBGA | |
| STM32F103ZEH6 | IC MCU 32BIT 512KB FLASH 144BGA | |
| STM32F103ZEH6TR | IC MCU 32BIT 512KB FLASH 144BGA | |
| STM32F103ZFH6TR | IC MCU 32BIT 768KB FLSH 144LFBGA | |
| STM32F103ZEH7 | IC MCU 32BIT 512KB FLSH 144LFBGA | |
| STM32F103ZFH6 | IC MCU 32BIT 768KB FLSH 144LFBGA | |
| STM32F103ZCH6 | IC MCU 32BIT 256KB FLSH 144LFBGA | |
| STM32F103ZDH6TR | IC MCU 32BIT 384KB FLSH 144LFBGA | |
| STM32F103ZEH7TR | IC MCU 32BIT 512KB FLSH 144LFBGA | |
| STM32F103ZGH7 | IC MCU 32BIT 1MB FLASH 144LFBGA | |
| STR710FZ2H6 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR730FZ2H6 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR710FZ1H6 | IC MCU 32BIT 128KB FLASH 144BGA | |
| STR730FZ1H6 | IC MCU 32BIT 128KB FLASH 144BGA | |
| STR730FZ1H7 | IC MCU 32BIT 128KB FLASH 144BGA | |
| STR730FZ2H7 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR735FZ1H6 | IC MCU 32BIT 128KB FLASH 144BGA | |
| STR735FZ1H7 | IC MCU 32BIT 128KB FLASH 144BGA | |
| STR735FZ2H6 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR735FZ2H7 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR910FAZ32H6 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR912FAZ42H6 | IC MCU 32BIT 256KB FLASH 144BGA | |
| STR912FAZ44H6 | IC MCU 32BIT 512KB FLASH 144BGA | |
| STR912FAZ47H6T | IC MCU 32BIT 2MB FLASH 144BGA | |
| STR912FAZ44H6T | IC MCU 32BIT 512KB FLASH 144BGA | |
| STR912FAZ47H6 | IC MCU 32BIT 2MB FLASH 144BGA | |
| STR912FAZ46H6 | IC MCU 32BIT 1MB FLASH 144BGA | |
| STM32F103ZGH6JTR | IC MCU 32BIT 1MB FLASH 144LFBGA | |
| STM32F103ZGH6J | IC MCU 32BIT 1MB FLASH 144LFBGA | |
| STR710FZ2H6TR | IC MCU 32BIT 256KB FLASH 144BGA |
Product Description
Product Details
The STMicroelectronics STM32F103ZDH6 is a 32-bit microcontroller with 384KB of Flash memory and 144-pin BGA package. It is designed for high-performance applications and offers a wide range of features, including a high-speed ARM Cortex-M3 processor, advanced analog and digital peripherals, and a wide range of communication interfaces. The STM32F103ZDH6 is ideal for applications requiring high-speed data processing, real-time control, and low power consumption. It is also suitable for applications requiring high-performance graphics, audio, and video processing. With its advanced features and low power consumption, the STM32F103ZDH6 is an ideal choice for embedded systems.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Microcontrollers |
| Series | STM32 F1 |
| Packaging | Tray |
| Unit-Weight | 0.015757 oz |
| Mounting-Style | SMD/SMT |
| Tradename | STM32 |
| Package-Case | 144-LFBGA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 144-LFBGA (10x10) |
| Number-of-I-O | 112 I/O |
| Speed | 72MHz |
| EEPROM-Size | - |
| Core-Processor | ARMR CortexR-M3 |
| RAM-Size | 64K x 8 |
| Program Memory | FLASH |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Connectivity | CAN, I2C, IrDA, LIN, SPI, UART/USART, USB |
| Voltage-Supply-Vcc-Vdd | 2 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 384KB (384K x 8) |
| Data-Converters | A/D 21x12b; D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2 V to 3.6 V |
| Interface-Type | CAN I2C SPI USART |
| Core | ARM Cortex M3 |
| Processor-Series | ARM Cortex-M |
| Data-Bus-Width | 32 bit |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 2 V |
| Package-Case | BGA-144 |
| Maximum-Clock-Frequency | 72 MHz |
| Number-of-ADC-Channels | 16 ADC Channels |
| Input/output | 112 I/O |
| Data-RAM-Size | 64 kB |
| Number-of-Timers-Counters | 8 Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
Descriptions
ARM? Cortex?-M3 STM32F1 Microcontroller IC 32-Bit 72MHz 384KB (384K x 8) FLASH 144-LFBGA (10x10)
MCU 32-bit ARM Cortex M3 RISC 384KB Flash 2.5V/3.3V 144-Pin LFBGA Tray
ARM Microcontrollers - MCU 32BIT Cortex M3 384Kb Flash MCU
