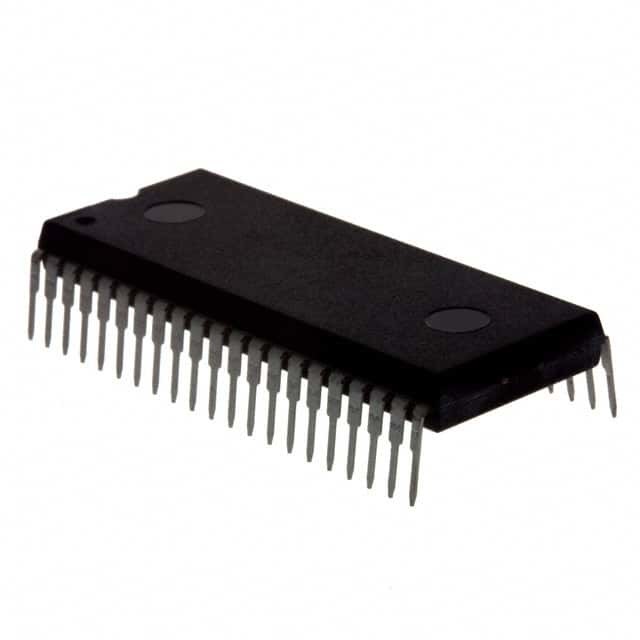

MC68HC705C8AB IC MCU 8BIT 8KB OTP 42DIP Freescale Semiconductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Core Processor | HC05 | Core Size | 8-Bit |
---|---|---|---|
Speed | 2.1MHz | Connectivity | SCI, SPI |
Peripherals | POR, WDT | Number Of I/O | 24 |
Program Memory Size | 8KB (8K X 8) | Program Memory Type | OTP |
EEPROM Size | - | RAM Size | 304 X 8 |
Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | Data Converters | - |
Oscillator Type | Internal | Operating Temperature | 0°C ~ 70°C (TA) |
Mounting Type | Through Hole | Package / Case | 42-SDIP (0.600", 15.24mm) |
Supplier Device Package | 42-PDIP |
You can tick the products you need and communicate with us in the message board.
Part Number | Description | |
---|---|---|
MC68HC705C8AB | IC MCU 8BIT 8KB OTP 42DIP | |
MC908GR8CBE | IC MCU 8BIT 7.5KB FLASH 42DIP | |
MC9S08GT8ACBE | IC MCU 8BIT 8KB FLASH 42DIP | |
MC9S08AC16MBE | MICROCONTROLLER IC 8-BIT 40MHZ 1 | |
MC9S08AC16CBE | MICROCONTROLLER IC 8-BIT 40MHZ 1 | |
MC9S08GT32ACBE | IC MCU 8BIT 32KB FLASH 42DIP | |
MC68HC908BD48IB | IC MCU 8BIT 48KB FLASH 42DIP | |
MC68HC908GT16CB | IC MCU 8BIT 16KB FLASH 42DIP | |
MC9S08GT32CB | IC MCU 8BIT 32KB FLASH 42DIP | |
MC9S08GT60CB | IC MCU 8BIT 60KB FLASH 42DIP | |
MC68HC908AP64CB | IC MCU 8BIT 64KB FLASH 42DIP | |
MC68HC705C8AB | IC MCU 8BIT 8KB OTP 42DIP | |
MC68HC908GP32CB | IC MCU 8BIT 32KB FLASH 42DIP | |
MC68HC908GT8CB | IC MCU 8BIT 8KB FLASH 42DIP | |
MC68HC908SR12CB | IC MCU 8BIT 12KB FLASH 42DIP | |
MC68HC908AP16CB | IC MCU 8BIT 16KB FLASH 42DIP | |
MC68HC908AP32CB | IC MCU 8BIT 32KB FLASH 42DIP | |
MC68HC908AP8CB | IC MCU 8BIT 8KB FLASH 42DIP | |
MC908BD48IBE | IC MCU 8BIT 48KB FLASH 42DIP | |
MC908GP16CBE | IC MCU 8BIT 16KB FLASH 42DIP | |
MC908GP32CBE | IC MCU 8BIT 32KB FLASH 42DIP | |
MC908GT16CBE | IC MCU 8BIT 16KB FLASH 42DIP | |
MC908SR12CBE | IC MCU 8BIT 12KB FLASH 42DIP | |
MC908AP16CBE | IC MCU 8BIT 16KB FLASH 42DIP | |
MC908AP32CBE | IC MCU 8BIT 32KB FLASH 42DIP | |
MC908AP64CBE | IC MCU 8BIT 64KB FLASH 42DIP | |
MC908AP8CBE | IC MCU 8BIT 8KB FLASH 42DIP | |
MC908AP16ACBE | IC MCU 8BIT 16KB FLASH 42DIP | |
MC908AP32ACBE | IC MCU 8BIT 32KB FLASH 42DIP | |
MC908AP64ACBE | IC MCU 8BIT 64KB FLASH 42DIP | |
MC908AP8ACBE | IC MCU 8BIT 8KB FLASH 42DIP | |
MC908GR8CBE | IC MCU 8BIT 7.5KB FLASH 42DIP | |
MC908GT8CBE | IC MCU 8BIT 8KB FLASH 42DIP | |
MC9S08GT60ACBE | IC MCU 8BIT 60KB FLASH 42DIP | |
MC9S08GT16ACBE | IC MCU 8BIT 16KB FLASH 42DIP | |
MC705C8ACBE | IC MCU 8BIT 8KB OTP 42DIP | |
MC705C8ABE | IC MCU 8BIT 8KB OTP 42DIP | |
MC9S08AC8MBE | IC MCU 8BIT 8KB FLASH 42DIP |
Product Description
Product Details
General Description
IntroductionThe MC68HC705C8A, an enhanced version of the MC68HC705C8, is a member of the low-cost, high-performance M68HC05 Family of 8-bit microcontroller units (MCU). The MC68HSC705C8A, introduced in Appendix A. MC68HSC705C8A, is an enhanced, high-speed version of the MC68HC705C8A. The M68HC05 Family is based on the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the family use the M68HC05 central processor unit (CPU) and are available with a variety of subsystems, memory sizes and types, and package types.
Features
Features of the MC68HC705C8A include:• M68HC05 central processor unit (CPU)
• On-chip oscillator with crystal/ceramic resonator
• Memory-mapped input/output (I/O)
• Selectable memory configurations
• Selectable programmable and/or non-programmable computer operating properly (COP) watchdog timers
• Selectable port B external interrupt capability
• Clock monitor
• High current drive on pin C7 (PC7)
• 24 bidirectional I/O lines and 7 input-only lines
• Serial communications interface (SCI) system
• Serial peripheral interface (SPI) system
• Bootstrap capability
• Power-saving stop, wait, and data-retention modes
• Single 3.0-volt to 5.5-volt supply (2-volt data-retention mode)
• Fully static operation
• Software-programmable external interrupt sensitivity
• Bidirectional RESET pin
Specifications
Attribute | Attribute Value |
---|---|
Manufacturer | Freescale / N✖P |
Product Category | Microcontrollers |
Series | HC05 |
Packaging | Tube |
Package-Case | 42-SDIP (0.600", 15.24mm) |
Operating-Temperature | 0°C ~ 70°C (TA) |
Supplier-Device-Package | 42-PSDIP |
Number-of-I-O | 24 I/O |
Speed | 2.1MHz |
EEPROM-Size | - |
Core-Processor | HC05 |
RAM-Size | 304 x 8 |
Program Memory | OTP |
Peripherals | POR, WDT |
Connectivity | SCI, SPI |
Voltage-Supply-Vcc-Vdd | 3 V ~ 5.5 V |
Core-Size | 8-Bit |
Program-Memory-Size | 8KB (8K x 8) |
Data-Converters | - |
Oscillator-Type | Internal |
Descriptions
HC05 HC05 Microcontroller IC 8-Bit 2.1MHz 8KB (8K x 8) OTP 42-PSDIP
