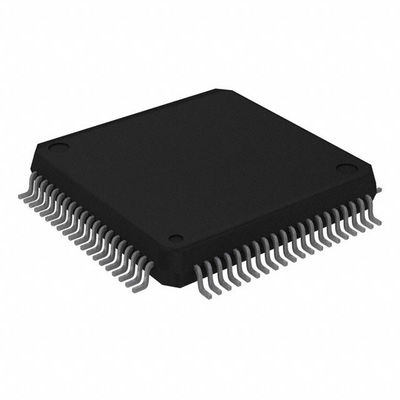

R5F111NJALA#U0 IC MCU 16BIT 256KB FLASH 85VFLGA Renesas Electronics America Inc



Features

Ultra-Low Power Technology
• 1.8 V to 5.5 V operation from a single supply
• Stop (RAM retained): 0.23 µA, (LVD enabled): 0.31 µ
• Snooze: 0.7 mA (UART), 1.20 mA (ADC)
• Operating: 63 µA /MHz





16-bit RL78 CPU Core

• Delivers 31 DMIPS at maximum operating frequency of 24 MHz
• Instruction Execution: 86 % of instructions can be executed in 1 to 2 clock cycles
• CISC Architecture (Harvard) with 3-stage pipeline
• Multiply Signed & Unsigned: 16 x 16 to 32-bit result in 1 clock cycle
• MAC: 16 x 16 to 32-bit result in 2 clock cycles
• 16-bit barrel shifter for shift & rotate in 1 clock cycle
• 1-wire on-chip debug function





Main Flash Memory

• Density: 2 KB to 16 KB
• Block size: 1 KB
• On-chip single voltage flash memory with protection from block erase/writing





Data Flash Memory

• Data Flash with background operation
• Data flash size: 2 KB size options
• Erase Cycles: 1 Million (typ.)
• Erase/programming voltage: 1.8 V to 5.5 V RAM
• 256 B to 1.5 KB size options
• Supports operands or instructions
• Back-up retention in all modes





High-speed Oscillator Oscillator

• 24MHz with +/- 1% accuracy over voltage (1.8 V to 5.5 V) and temperature (-20 °C to 85 °C)
• Pre-configured settings: 24 MHz, 16 MHz, 12 MHz, 8 MHz, 6 MHz, 4 MHz, 3 MHz, 2 MHz, and 1 MHz





Reset and Supply Management

• Power-on reset (POR) monitor/generator
• Low voltage detection (LVD) with 12 setting options (Interrupt and/or reset function)
