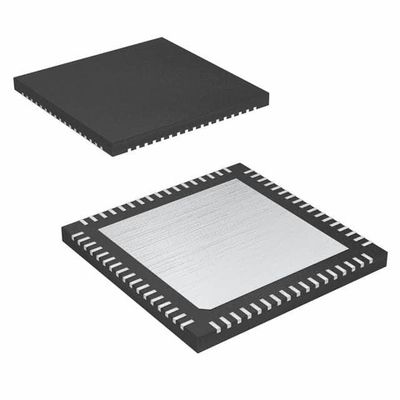

CY8C5268LTI-LP030 IC MCU 32BIT 256KB FLASH 68QFN Infineon Technologies



General Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. The PSoC 5LP architecture boosts performance through:
■ 32-bit ARM Cortex-M3 core plus DMA controller at up to 80 MHz
■ Ultra low power with industry’s widest voltage range
■ Programmable digital and analog peripherals enable custom functions
■ Flexible routing of any analog or digital peripheral function to any pin
PSoC devices employ a highly configurable system-on-chip architecture for embedded control design. They integrate configurable analog and digital circuits, controlled by an on-chip microcontroller. A single PSoC device can integrate as many as 100 digital and analog peripheral functions, reducing design time, board space, power consumption, and system cost while improving system quality.





Features

■ Operating characteristics
□ Voltage range: 1.71 to 5.5 V, up to 6 power domains
□ Temperature range (ambient) –40 to 85 °C[1]
□ DC to 80-MHz operation
□ Power modes
• Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz
• 2-µA sleep mode
• 300-nA hibernate mode with RAM retention
□ Boost regulator from 0.5-V input up to 5-V output
■ Performance
□ 32-bit ARM Cortex-M3 CPU, 32 interrupt inputs
□ 24-channel direct memory access (DMA) controller
■ Memories
□ Up to 256 KB program flash, with cache and security features
□ Up to 32 KB additional flash for error correcting code (ECC)
□ Up to 64 KB RAM
□ 2 KB EEPROM
■ Digital peripherals
□ Four 16-bit timer, counter, and PWM (TCPWM) blocks
□ I2C, 1 Mbps bus speed
□ USB 2.0 certified Full-Speed (FS) 12 Mbps peripheral interface (TID#10840032) using internal oscillator[2]
□ 20 to 24 universal digital blocks (UDB), programmable to create any number of functions:
• 8-, 16-, 24-, and 32-bit timers, counters, and PWMs
• I2C, UART, SPI, I2S, LIN 2.0 interfaces
• Cyclic redundancy check (CRC)
• Pseudo random sequence (PRS) generators
• Quadrature decoders
• Gate-level logic functions
■ Programmable clocking
□ 3- to 74-MHz internal oscillator, 2% accuracy at 3 MHz
□ 4- to 25-MHz external crystal oscillator
□ Internal PLL clock generation up to 80 MHz
□ Low-power internal oscillator at 1, 33, and 100 kHz
□ 32.768-kHz external watch crystal oscillator
□ 12 clock dividers routable to any peripheral or I/O
■ Analog peripherals
□ 12-bit SAR ADC
□ 8-bit DAC
□ Two comparators
□ CapSense® support, up to 62 sensors
□ 1.024 V ±1% internal voltage reference
■ Versatile I/O system
□ 46 to 72 I/O pins – up to 62 general-purpose I/Os (GPIOs)
□ Up to eight performance I/O (SIO) pins
• 25 mA current sink
• Programmable input threshold and output high voltages
• Can act as a general-purpose comparator
• Hot swap capability and overvoltage tolerance
□ Two USBIO pins that can be used as GPIOs
□ Route any digital or analog peripheral to any GPIO
□ LCD direct drive from any GPIO, up to 46 × 16 segments
□ CapSense support from any GPIO
□ 1.2-V to 5.5-V interface voltages, up to four power domains
■ Programming, debug, and trace
□ JTAG (4-wire), serial wire debug (SWD) (2-wire), single wire viewer (SWV), and Traceport (5-wire) interfaces
□ ARM debug and trace modules embedded in the CPU core
□ Bootloader programming through I2C, SPI, UART, USB, and other interfaces
■ Package options: 68-pin QFN,100-pin TQFP, and 99-pin CSP
■ Development support with free PSoC Creator™ tool
□ Schematic and firmware design support
□ Over 100 PSoC Components™ integrate multiple ICs and system interfaces into one PSoC. Components are free embedded ICs represented by icons. Drag and drop component icons to design systems in PSoC Creator.
□ Includes free GCC compiler, supports Keil/ARM MDK compiler
□ Supports device programming and debugging
