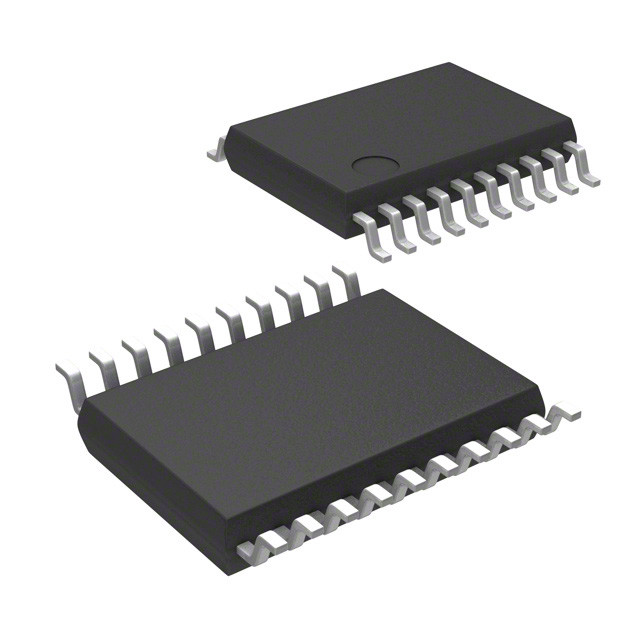

STM8S003F3P6TR IC MCU 8BIT 8KB FLASH 20TSSOP STMicroelectronics

Description

The STM8S003F3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016). TheSTM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-arttechnology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separateclock source, and a clock security system.

Features

16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

Application

Consumer Electronics

Computers & Computer Peripherals

Embedded Design & Development

Utilities
