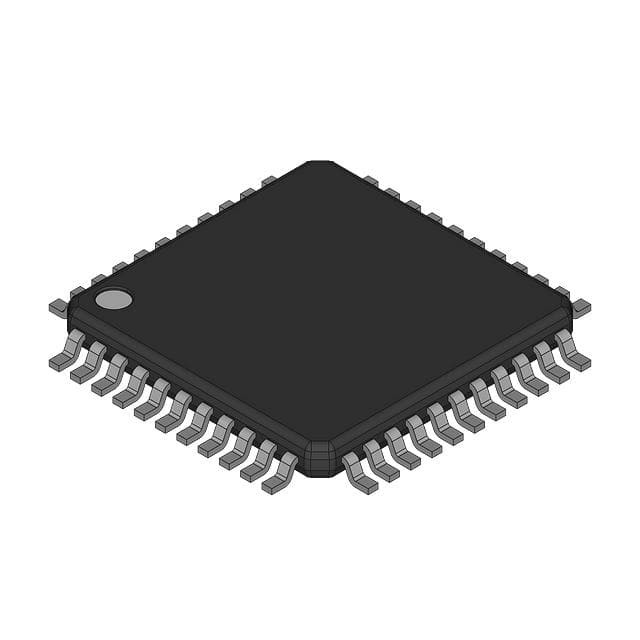

DS80C310+FCG IC MCU 8BIT ROMLESS 44TQFP Dallas Semiconductor



GENERAL DESCRIPTION

The DS80C310 is a fast 80C31/80C32-compatible microcontroller. It features a redesigned processor core without wasted clock and memory cycles. As a result, it executes every 8051 instruction between 1.5x and 3x faster than the original architecture for the same crystal speed. Typical applications have a speed improvement of 2.5x using the same code and the same crystal. The DS80C310 offers a 25MHz maximum crystal speed, resulting in apparent execution speeds of 62.5MHz (approximately 2.5x).
The DS80C310 is pin compatible with the standard 80C32 and includes standard resources such as three timer/counters, 256 bytes of RAM, and a serial port. It also provides dual data pointers (DPTRs) to speed block data memory moves. It also can adjust the speed of MOVX data memory access between two and nine machine cycles for flexibility in selecting external memory and peripherals. The DS80C310 offers upward compatibility with the DS80C320.





FEATURES

■ 80C32 Compatible
8051 Pin and Instruction Set Compatible
Full-Duplex Serial Port
Three 16-Bit Timer/Counters
256 Bytes Scratchpad RAM
Multiplexed Address/Data Bus
Addresses 64kB ROM and 64kB RAM
■ High-Speed Architecture
4 Clocks/Machine Cycle (8051 = 12)
Runs DC to 25MHz Clock Rates
Single-Cycle Instruction in 160ns
Dual Data Pointer
Optional Variable Length MOVX to Access
Fast/Slow RAM /Peripherals
■ 10 Total Interrupt Sources with 6 External
■ Internal Power-On Reset Circuit
■ Upwardly Compatible with the DS80C320
■ Available in 40-Pin Plastic DIP, 44-Pin PLCC, and 44-Pin TQFP
