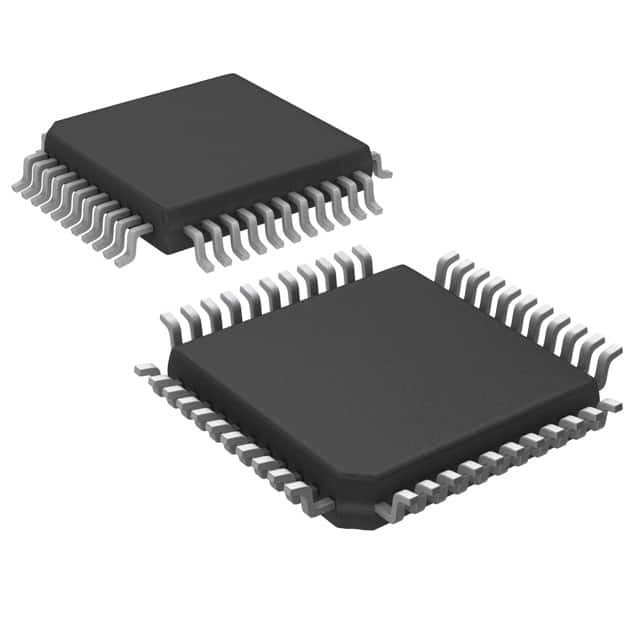

PIC16F877-04/PQ IC MCU 8BIT 14KB FLASH 44MQFP Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | PIC16F877-04/PQ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Product Details
| Core Processor | PIC | Core Size | 8-Bit |
|---|---|---|---|
| Speed | 4MHz | Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Number Of I/O | 33 |
| Program Memory Size | 14KB (8K X 14) | Program Memory Type | FLASH |
| EEPROM Size | 256 X 8 | RAM Size | 368 X 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V | Data Converters | A/D 8x10b |
| Oscillator Type | External | Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
You can tick the products you need and communicate with us in the message board.
