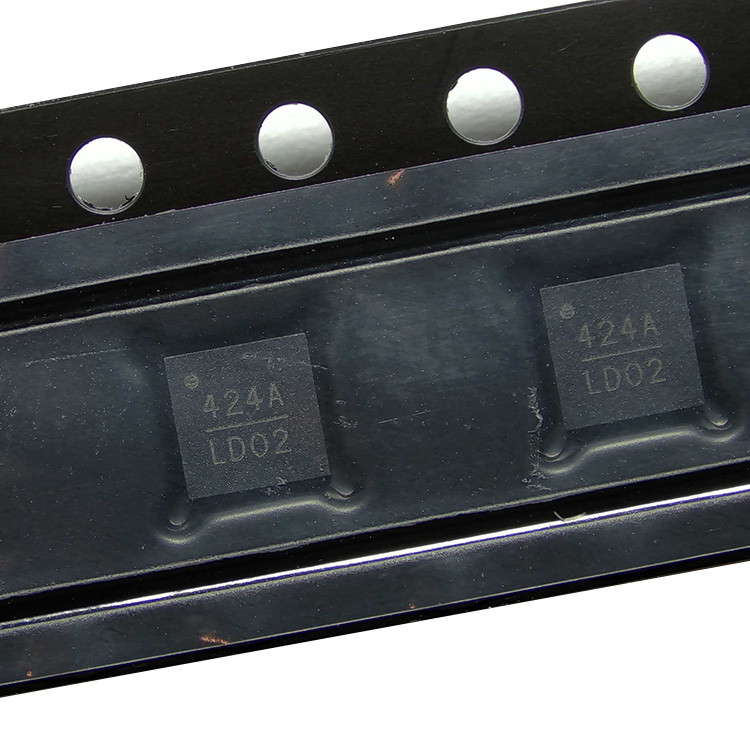

HMC424ALP3ETR RF ATTENUATOR 31.5DB 16VFQFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC424ALP3ETR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Attenuation Value | 31.5dB | Frequency Range | 0 Hz ~ 13 GHz |
|---|---|---|---|
| Power (Watts) | - | Impedance | - |
| Package / Case | 16-VFQFN Exposed Pad | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC404 chip is a sub-harmonically pumped (x2) MMIC image rejection mixer with an integrated LO amplifier which can be used as an upconverter or downconverter. The chip utilizes a GaAs PHEMT technology that results in a small overall chip area of 2.31mm2. The on-chip 90° hybrid provides excellent amplitude and phase balance resulting in greater than 22 dB of image rejection. The LO amplifier is a single bias (+4V) two stage design with only +2 dBm nominal drive required.
Features
Integrated LO Amplifi er: +2 dBm InputSub-Harmonically Pumped (x2) LO
Image Rejection: 22 dB
Small Size: 1.24mm x 1.86mm
Typical Applications
The HMC404 is ideal for:
• 26 to 33 GHz Microwave Radios
• Up and Down Converter for Point to Point Radios
• Satellite Communication Systems
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Attenuators |
| Series | HMC424A |
| Type | Digital Attenuator |
| Packaging | Reel |
| Unit-Weight | 0.002014 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | |
| Impedance | - |
| Technology | GaAs |
| Frequency-Range | 0 ~ 13GHz |
| Number-of-Channels | 1 Channel |
| Number-of-Bits | 6 bit |
| Watt | - |
| Tolerance | ±0.3dB |
| Attenuation-Value | 31.5dB |
| Insertion-Loss | 4.4 dB |
| Power-Rating | 23 dBm |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | - 5 V |
| Maximum-Frequency | 13 GHz |
| Maximum-Attenuation | 31.5 dB |
| Package-Case | QFN-16 |
| Attenuator-Step-Size | 0.5 dB |
| Minimum-Frequency | 0 Hz |
| Maximum-VSWR | - |
Descriptions
6Bits 0.5dBStep 31.5dB Digital Attenuator 13GHz 16-Pin QFN EP T/R
Attenuators 5 dB LSB 6-Bit dig atten SMT
