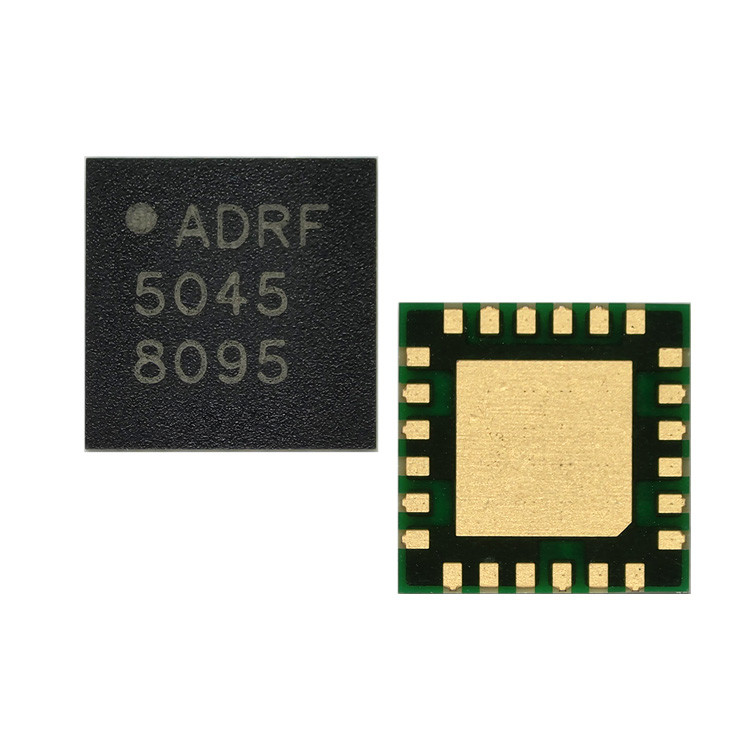

ADRF5045BCCZN-R7 IC RF SWITCH SP4T 30GHZ 24LGA Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADRF5045BCCZN-R7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | RF Type | General Purpose |
|---|---|---|---|
| Topology | Absorptive | Circuit | SP4T |
| Frequency Range | 9kHz ~ 30GHz | Isolation | 45dB |
| Insertion Loss | 2.4dB | Test Frequency | 30GHz |
| P1dB | 28dBm | IIP3 | 50dBm |
| Impedance | 50Ohm | Voltage - Supply | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C (TC) | Mounting Type | Surface Mount |
| Package / Case | 24-VFLGA Exposed Pad | Supplier Device Package | 24-LGA (4x4) |
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Switches |
| Series | - |
| Impedance | 50Ohm |
| Operating-Temperature | -40°C ~ 85°C (TC) |
| Frequency-Range | 9kHz ~ 30GHz |
| Features | - |
| Voltage-Supply | 3．15V ~ 3．45V |
| Supplier-Device-Package | 24-LGA (4x4) |
| Circuit | SP4T |
| Topology | Absorptive |
| Insertion-Loss | 2．4dB |
| Test-Frequency | 30GHz |
| RF-Type | General Purpose |
| Isolation | 45dB |
| IIP3 | 50dBm |
| Package-Case | 24-VFLGA Exposed Pad |
| Package | Tape & Reel (TR) |
| Manufacturer | Analog Devices |
| Product-Status | Active |
| Base-Product-Number | ADRF5045 |
| P1dB | 28dBm |
