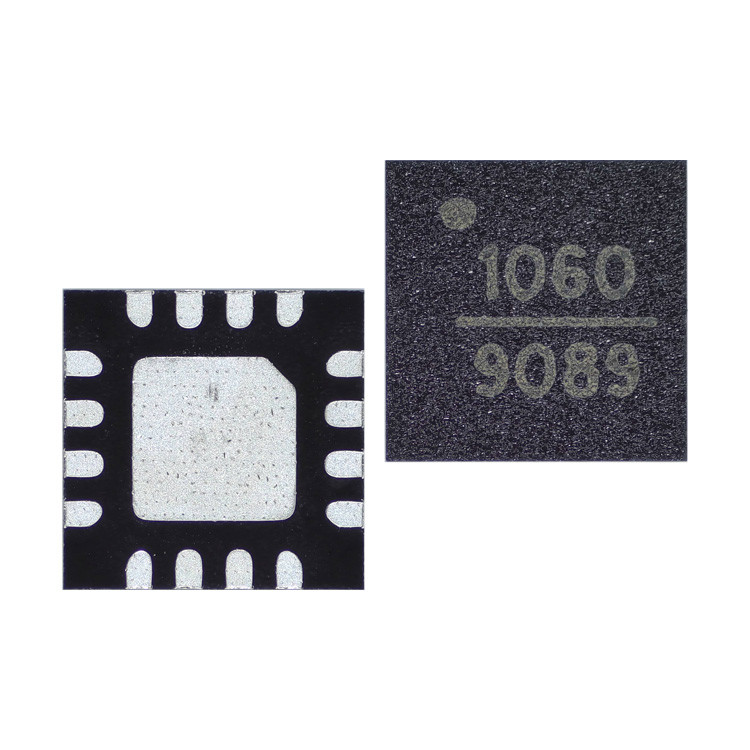

HMC1060LP3E IC REG LINEAR POS ADJ 16QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC1060LP3E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 4 | Voltage - Input (Max) | 5.6V |
| Voltage - Output (Min/Fixed) | 1.8V | Voltage - Output (Max) | 5.2V |
| Voltage Dropout (Max) | - | Current - Output | 100mA, 50mA, 300mA, 500mA |
| Current - Quiescent (Iq) | 2.1 MA | Current - Supply (Max) | - |
| PSRR | 80dB ~ 52dB (1kHz ~ 10MHz) | Control Features | Enable |
| Protection Features | Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | IC Chips |
| Series | HMC1060 |
| Product | Linear Voltage Regulators |
| Type | Low Noise High PSRR |
| Packaging | Cut Strip Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-VFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | 16-QFN (3x3) |
| Voltage-Input | 3.35 V ~ 5.6 V |
| Number-of-Outputs | 4 Outputs |
| Current-Output | 50mA, 100mA, 300mA |
| Voltage-Output | 1.8 V ~ 5.2 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 4 Regulators |
| Current-Limit-Min | - |
| Pd-Power-Dissipation | 1.6 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.8 V to 5.2 V |
| Input-Voltage-MAX | 5.6 V |
| Output-Current | 500 mA |
| Input-Voltage-MIN | 5.3 V |
| Load-Regulation | 0.007 %/mA |
| Package-Case | SMT-16 |
| Power Supply Ripple Rejection (PSRR) | 80 dB |
Descriptions
Linear Voltage Regulator 16-Pin QFN EP T/R
Linear Voltage Regulators volt Regulator Quad hi Current
