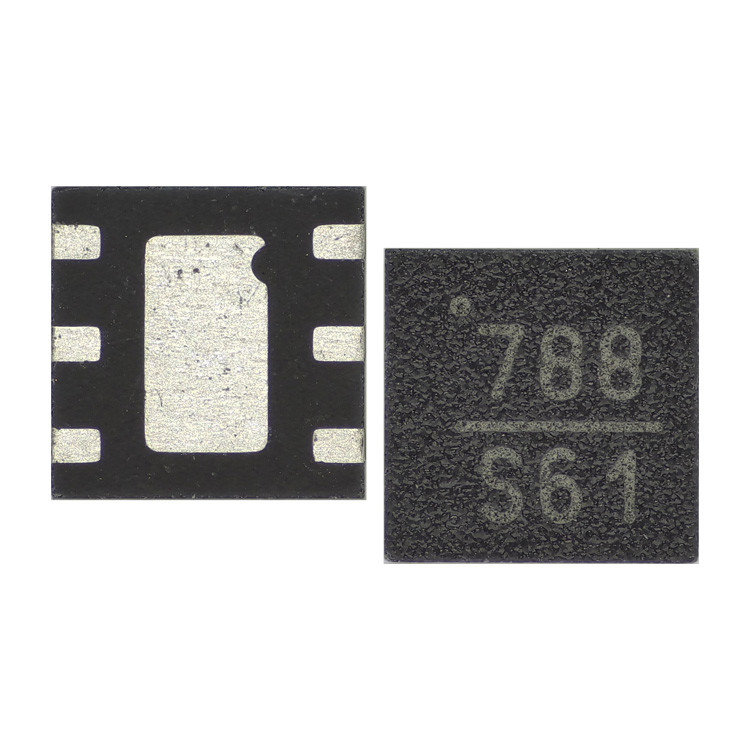

HMC788LP2ETR IC RF AMP GPS 0HZ-10GHZ 6DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC788LP2ETR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 0Hz ~ 10GHz | P1dB | 20dBm |
|---|---|---|---|
| Gain | 12dB | Noise Figure | 9dB |
| RF Type | General Purpose | Voltage - Supply | 5V |
| Current - Supply | 76mA | Test Frequency | - |
| Mounting Type | Surface Mount | Package / Case | 6-TDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The hmC797 is a GaAs mmiC phemT Distributed power Amplifier die which operates between DC and 22 Ghz. The amplifier provides 14.5 dB of gain, 40 dBm output ip3 and +28 dBm of output power at 1 dB gain compression while requiring 400mA from a +10V supply.
Features
high p1dB output power: +28 dBmhigh psat output power: +31 dBm
high Gain: 14.5 dB
high output ip3: +40 dBm
supply Voltage: +10 V @ 400 mA
50 ohm matched input/output
Die size: 2.89 x 1.55 x 0.1 mm
Typical Applications
The hmC797 is ideal for:• Test instrumentation
• microwave radio & VsAT
• military & space
• Telecom infrastructure
• fiber optics
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Amplifiers |
| Series | - |
| Packaging | |
| Package-Case | 6-VDFN Exposed Pad |
| Frequency | 0Hz ~ 10GHz |
| Voltage-Supply | 5V |
| Supplier-Device-Package | 6-DFN (2x2) |
| Current-Supply | 76mA |
| Gain | 12dB |
| Test-Frequency | - |
| P1dB-Compression-Point | 20dBm |
| Noise-Figure | 9dB |
| RF-Type | General Purpose |
Descriptions
RF Amplifier IC General Purpose 0Hz ~ 10GHz 6-DFN (2x2)
