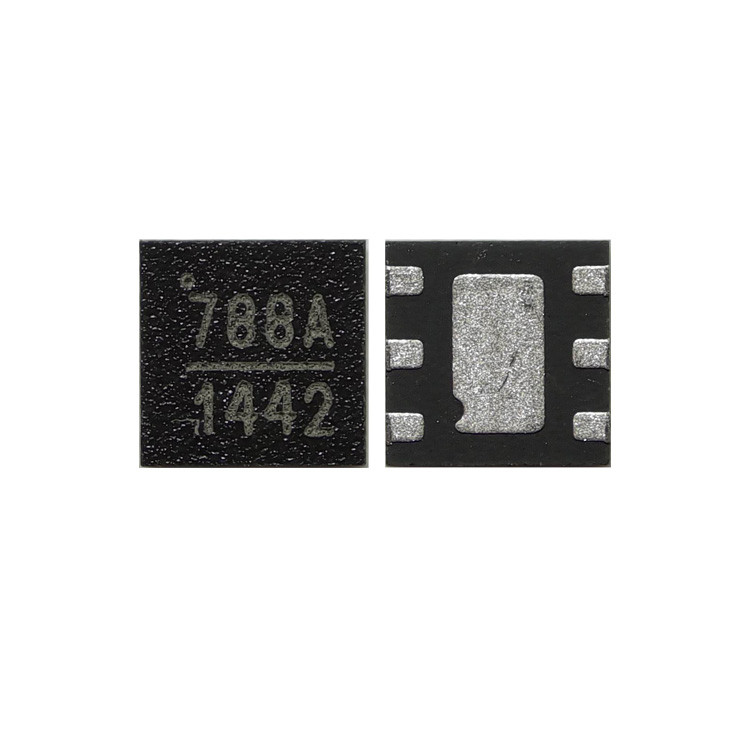

HMC788ALP2E IC RF AMP LTE 0HZ-10GHZ 6LFCSP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC788ALP2E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 0Hz ~ 10GHz | P1dB | 18dBm |
|---|---|---|---|
| Gain | 12dB | Noise Figure | 7dB |
| RF Type | LTE, WiMax | Voltage - Supply | 5V |
| Current - Supply | 76mA | Test Frequency | 6GHz ~ 10GHz |
| Mounting Type | Surface Mount | Package / Case | 6-VDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP (2x2) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The hmC797 is a GaAs mmiC phemT Distributed power Amplifier die which operates between DC and 22 Ghz. The amplifier provides 14.5 dB of gain, 40 dBm output ip3 and +28 dBm of output power at 1 dB gain compression while requiring 400mA from a +10V supply.
Features
high p1dB output power: +28 dBmhigh psat output power: +31 dBm
high Gain: 14.5 dB
high output ip3: +40 dBm
supply Voltage: +10 V @ 400 mA
50 ohm matched input/output
Die size: 2.89 x 1.55 x 0.1 mm
Typical Applications
The hmC797 is ideal for:• Test instrumentation
• microwave radio & VsAT
• military & space
• Telecom infrastructure
• fiber optics
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | IC Chips |
| Manufacturer | Analog Devices Inc. |
| Product-Category | RF Amplifier |
| RoHS | Details |
| Mounting-Style | SMD/SMT |
| Package-Case | DFN-EP-6 |
| Packaging | Reel |
| Brand | Analog Devices |
| Series | HMC788A |
Descriptions
RF Amp Single MMIC Amp 10GHz 7V 6-Pin DFN EP T/R
RF Amplifier 10 GHz gain block Linr Drive/Gain Block
