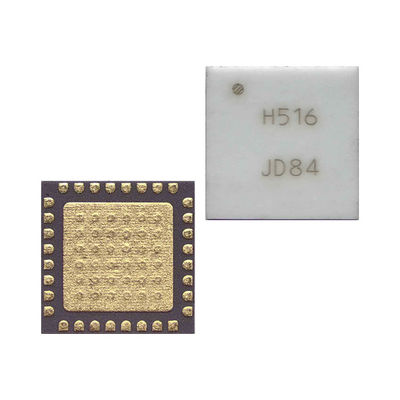

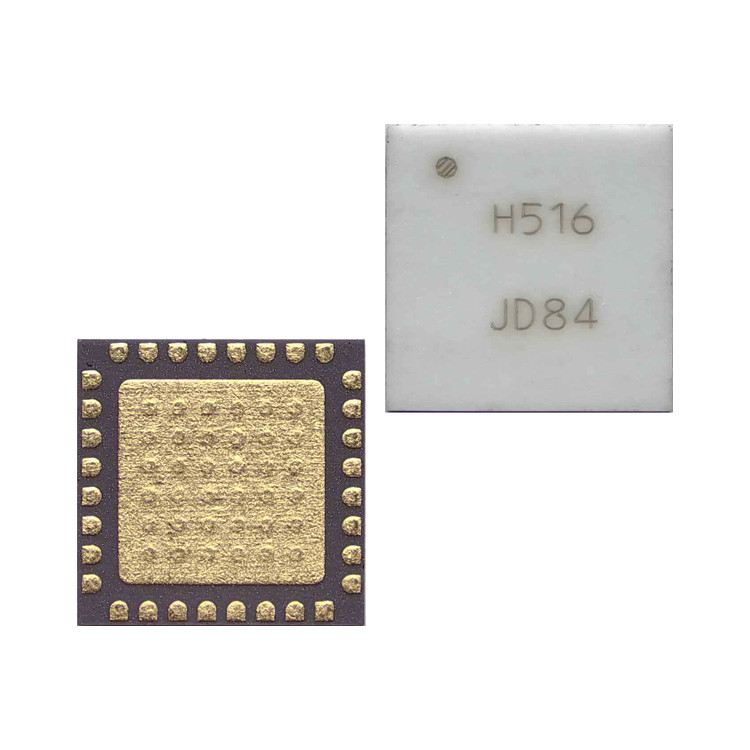

HMC516LC5 IC RF AMP GPS 9GHZ-18GHZ 32QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC516LC5 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 9GHz ~ 18GHz | P1dB | 14dBm |
|---|---|---|---|
| Gain | 20.5dB | Noise Figure | 2dB |
| RF Type | General Purpose | Voltage - Supply | 2.5V ~ 3.5V |
| Current - Supply | 88mA | Test Frequency | - |
| Mounting Type | Surface Mount | Package / Case | 32-TFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC516LC5 is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifi er (LNA) housed in a leadless “Pb free” RoHS compliant SMT package. The HMC516LC5 provides 20 dB of small signal gain, 2.0 dB of noise fi gure and has an output IP3 of +25 dBm. The P1dB output power of +13 dBm enables the LNA to also function as a LO driver for balanced, I/Q or image reject mixers. The HMC516LC5 allows the use of surface mount manufacturing techniques.
Features
Noise Figure: 2.0 dBGain: 20 dB
OIP3: +25 dBm
Single Supply: +3V @ 65 mA
50 Ohm Matched Input/Output
RoHS Compliant 5 X 5 mm Package
Typical Applications
The HMC516LC5 is ideal for use as a LNA or driver amplifier for:• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment and Sensors
• Military
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | HITTITE |
| Product Category | IC Chips |
| Series | HMC516G |
| Type | RF Amplifier |
| Packaging | Cut Strip Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 32-TFQFN Exposed Pad |
| Frequency | 9GHz ~ 18GHz |
| Technology | GaAs |
| Frequency-Range | 9 GHz to 18 GHz |
| Number-of-Channels | 1 Channel |
| Voltage-Supply | 2.5 V ~ 3.5 V |
| Supplier-Device-Package | 32-SMT (5x5) |
| Current-Supply | 88mA |
| Gain | 20.5dB |
| Amplifier-Type | LNA |
| Test-Frequency | - |
| P1dB-Compression-Point | 14dBm |
| Noise-Figure | 2dB |
| RF-Type | General Purpose |
| Pd-Power-Dissipation | 1.25 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 3 V |
| Operating-Supply-Current | 65 mA |
| Operating-Frequency | 18 GHz |
| NF-Noise-Figure | 2 dB |
| P1dB-Compression-Point | 14 dBm |
| OIP3-Third-Order-Intercept | 25 dBm |
| Input-Return-Loss | 10 dB |
Descriptions
RF Amp Single LNA 18GHz 4V 32-Pin CQFN EP T/R
RF Amplifier lo Noise amp SMT 9 - 18 GHz
