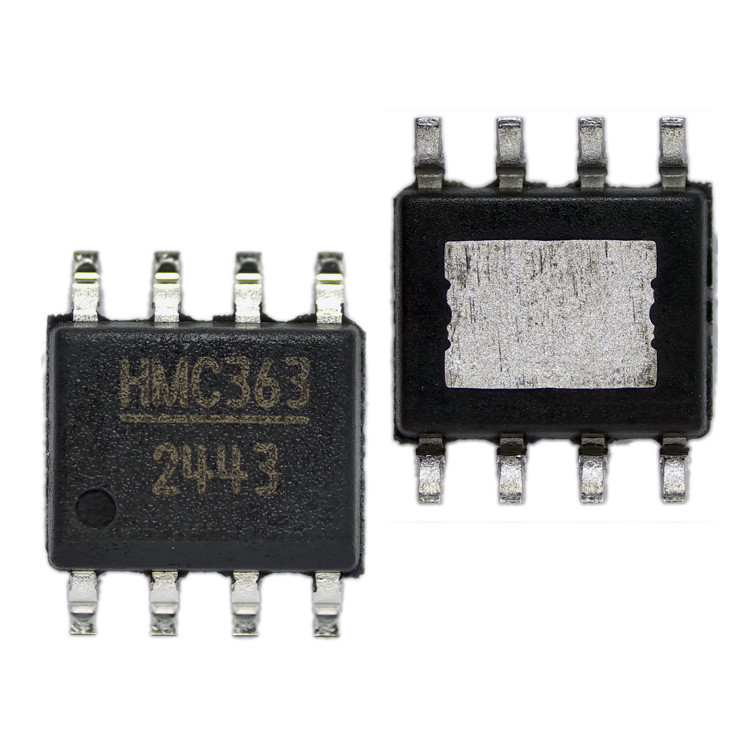

HMC363S8GE IC FREQ DIVIDER DC-12GHZ 8SMD Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC363S8GE |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Prescaler | Frequency | 0Hz ~ 12GHz |
|---|---|---|---|
| RF Type | General Purpose | Secondary Attributes | Divide By 8 |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC363 is a low noise Divide-by-8 Static Divider with InGaP GaAs HBT technology that has a small size of 1.45 x 0.69 mm. This device operates from DC (with a square wave input) to 12 GHz input frequency with a single +5V DC supply. The low additive SSB phase noise of -153 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.
Features
Ultra Low SSB Phase Noise: -153 dBc/HzWide Bandwidth
Output Power: -6 dBm
Single DC Supply: +5V
Small Size: 1.45 x 0.69 x 0.1 mm
Typical Applications
Prescaler for DC to X Band PLL Applications:
• Satellite Communication Systems
• Fiber Optic
• Point-to-Point and Point-to-Multi-Point Radios
• VSAT
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Misc ICs and Modules |
| Series | HMC363G |
| Packaging | Cut Strip Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Frequency | 0Hz ~ 12GHz |
| Technology | GaAs InGaP |
| Function | Prescaler |
| Supplier-Device-Package | 8-SMT |
| RF-Type | General Purpose |
| Secondary-Attributes | Divide by 8 |
| Output-Power | - 6 dBm |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 5 V |
| Operating-Supply-Current | 70 mA |
| Maximum-Operating-Frequency | 12 GHz |
| Supply-Voltage-Max | 5.25 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | S8G-8 |
| Minimum-Operating-Frequency | DC |
| Division | 8 |
Descriptions
Prescaler 5V 1/8 12000MHz 8-Pin SOIC EP T/R
Prescaler InGaP HBT Divide-by-8 SMT DC - 12 GHz
