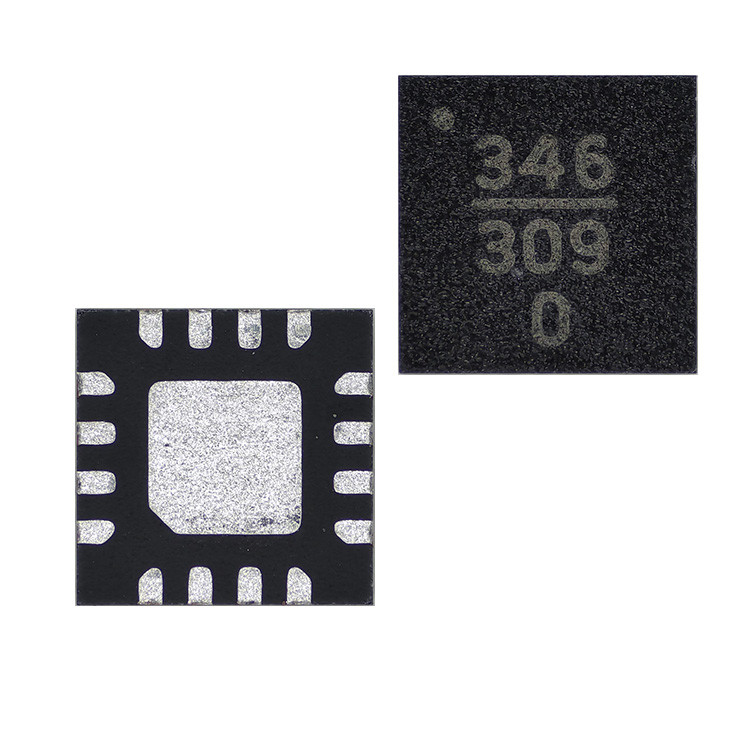

HMC346LP3 RF ATTENUATOR 0DB-30DB 16VFQFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC346LP3 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Attenuation Value | 0dB ~ 30dB | Frequency Range | 0 Hz ~ 14 GHz |
|---|---|---|---|
| Power (Watts) | - | Impedance | 50 Ohms |
| Package / Case | 16-VFQFN Exposed Pad | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC346LP3 & HMC346LP3E are pabsorp tive Voltage Variable Attenuators (VVA) in low cost leadless surface mount plastic packages operating from DC - 14 GHz. It features an on-chip reference attenuator for use with an external op-amp to provide simple single voltage attenuation control, 0 to -3V. The device is ideal in designs where an analog DC control signal must control RF signal levels over a 30 dB amplitude range. This VVA is an excellent alterna tive to the HMC121C8.
Features
Wide Bandwidth: DC - 14 GHzLow Phase Shift vs. Attenuation
30 dB Attenuation Range
Simplifi ed Voltage Control
3 x 3 x 1 mm SMT Package
Typical Applications
The HMC346LP3 / HMC346LP3E is ideal for:• Basestation Infrastructure
• Fiber Optics & Broadband Telecom
• Microwave Radio & VSAT
• Military Radios, Radar, & ECM
• Test Instrumentation
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | IC Chips |
| Series | - |
| Package-Case | |
| Impedance | 50 Ohm |
| Frequency-Range | 0 ~ 14GHz |
| Watt | - |
| Tolerance | - |
| Attenuation-Value | 0dB ~ 30dB |
Descriptions
RF Attenuator 0dB ~ 30dB 0Hz ~ 14GHz 50 Ohms 16-VFQFN Exposed Pad
