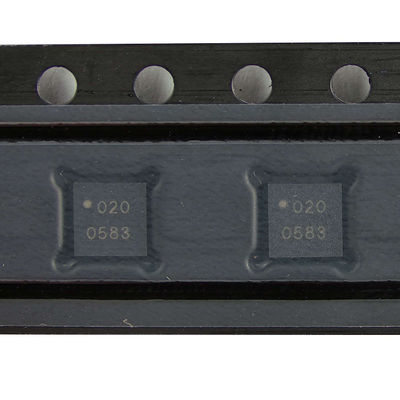

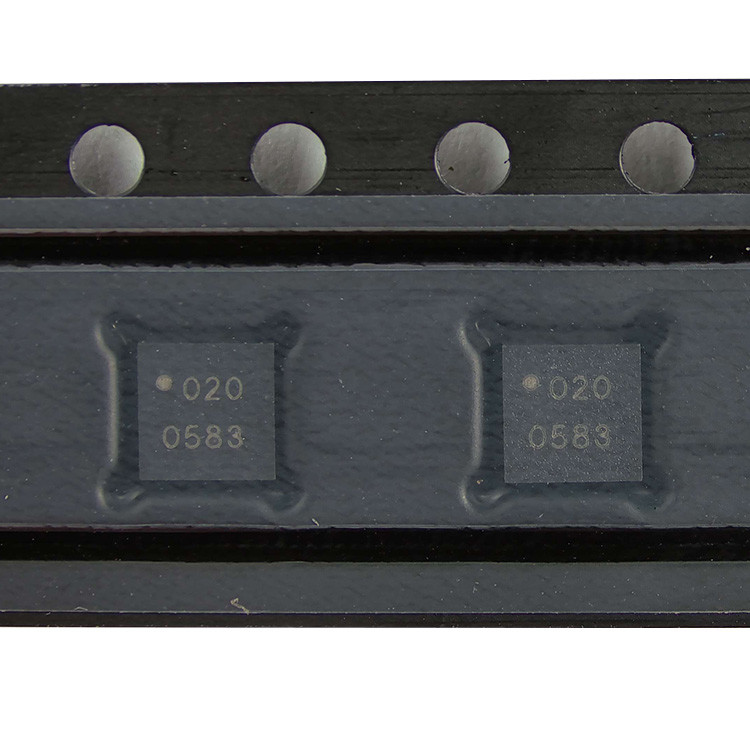

ADRF5020BCCZN IC RF SWITCH SPDT 30GHZ 20LGA Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADRF5020BCCZN |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | RF Type | VSAT |
|---|---|---|---|
| Topology | Absorptive | Circuit | SPDT |
| Frequency Range | 100MHz ~ 30GHz | Isolation | 65dB |
| Insertion Loss | 2dB | Test Frequency | 20GHz |
| P1dB | 28dBm | IIP3 | 52dBm |
| Impedance | 50Ohm | Voltage - Supply | 5.5V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 20-WFLGA Exposed Pad | Supplier Device Package | 20-LGA (3x3) |
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Switches |
| Mfr | Analog Devices Inc． |
| Series | - |
| Package | Strip |
| Product-Status | Active |
| RF-Type | VSAT |
| Topology | Absorptive |
| Circuit | SPDT |
| Frequency-Range | 100MHz ~ 30GHz |
| Isolation | 65dB |
| Insertion-Loss | 2dB |
| Test-Frequency | 20GHz |
| P1dB | 28dBm |
| IIP3 | 52dBm |
| Features | - |
| Impedance | 50Ohm |
| Voltage-Supply | 5．5V |
| Operating-Temperature | -40°C ~ 85°C |
| Package-Case | 20-WFLGA Exposed Pad |
| Supplier-Device-Package | 20-LGA (3x3) |
| Base-Product-Number | ADRF5020 |
Descriptions
RF Switch SPDT 100MHz to 30GHz 60dB 20-Pin LGA T/R
