2.5KV 3 Channels Digital Opto Isolator ADM2483BRWZ RS422/RS485 16SOIC
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADM2483BRWZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Technology | Magnetic Coupling | Type | RS422, RS485 |
|---|---|---|---|
| Isolated Power | No | Number Of Channels | 3 |
| Inputs - Side 1/Side 2 | 2/1 | Channel Type | Bidirectional |
| Voltage - Isolation | 2500Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 500kbps | Propagation Delay TpLH / TpHL (Max) | - |
| Pulse Width Distortion (Max) | - | Rise / Fall Time (Typ) | 600ns, 600ns (Max) |
| Voltage - Supply | 3V, 5V | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | ||
| Highlight | 2.5KV Digital Opto Isolator,3 Channels Digital Opto Isolator,ADM2483BRWZ |
||
Product Description

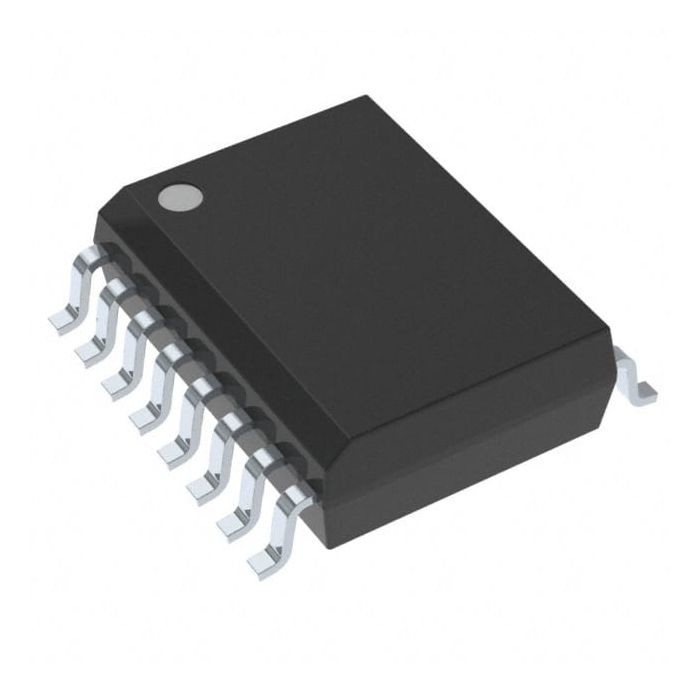

ADM2483BRWZ DGT ISO 2.5KV RS422/RS485 16SOIC Analog Devices Inc.
Product Details
GENERAL DESCRIPTION
The ADM2483differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data communication on balanced, multipoint bus transmission lines.It complies with ANSI EIA/TIA-485-A and ISO 8482: 1987(E). Using Analog Devices’ iCoupler technology, the ADM2483 combines a 3-channel isolator, a three-state differential line driver, and a differential input receiver into a single package. The logic side of the device is powered with either a 5 V or 3 V supply, and the bus side uses a 5 V supply only.
FEATURES
RS-485 transceiver with electrical data isolationComplies with ANSI TIA/EIA RS-485-A and ISO 8482: 1987(E)
500 kbps data rate
Slew rate-limited driver outputs
Low power operation: 2.5 mA max
Suitable for 5 V or 3 V operations (VDD1)
High common-mode transient immunity: >25 kV/μs
True fail-safe receiver inputs
Chatter-free power-up/power-down protection
256 nodes on bus
Thermal shutdown protection
Safety and regulatory approvals
UL recognition: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
IEC 609501 800 V rms (basic), 400 V rms (reinforced)
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
VIORM= 560 V peak
Operating temperature range: −40°C to +85°C
APPLICATIONS
Low power RS-485/RS-422 networks
Isolated interfaces
Building control networks
Multipoint data transmission systems
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | IC Chips |
| Manufacturer | Analog Devices Inc. |
| Product-Category | Digital Isolators |
| RoHS | Details |
| Number-of-Channels | 1 Channel |
| Isolation-Voltage | 2.5 kVrms |
| Isolation-Type | Magnetic Coupling |
| Data-Rate | 500 kb/s |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2.7 V |
| Operating-Supply-Current | 2.5 mA |
| Maximum-Operating-Temperature | + 85 C |
| Minimum-Operating-Temperature | - 40 C |
| Mounting-Style | SMD/SMT |
| Package-Case | SOIC-16 |
| Packaging | Tube |
| Brand | Analog Devices |
| Development-Kit | EVAL-ADM2483EBZ |
| Duplex | Half Duplex |
| Product | Digital Isolators |
| Protocol-Supported | RS-485 |
| Series | ADM2483 |
| Shutdown | No Shutdown |
| Type | RS-485 |
| Unit-Weight | 0.023492 oz |
Descriptions
Digital Isolators 2.5kV Signal Iso 500kbps Half Duplex
