Programmable 3.3V HDMI IC Chip , TDP158RSBR Integrated Circuit Chip

Brand Name Texas Instruments
Model Number TDP158RSBR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applications HDMI Interface -
Voltage - Supply 3.3V Package / Case 40-WFQFN Exposed Pad
Supplier Device Package 40-WQFN (5x5) Mounting Type Surface Mount
High Light

Programmable HDMI IC Chip

,

3.3V HDMI IC Chip

,

TDP158RSBR Integrated Circuit Chip

Leave a Message
Product Description

TDP158RSBR IC INTERFACE SPECIALIZED 40WQFN Texas Instruments

Product Details

Description

The TDP158 device is an AC-coupled HDMI signal to transition-minimized differential signal (TMDS) Redriver supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b and 2.0b output signals. The TDP158 supports four TMDS channels and Digital Display Control (DDC) interfaces. The TDP158 supports signaling rates up to 6 Gbps to allow for the highest resolutions of 4k2k60p 24 bits per pixel and up to WUXGA 16-bit color depth or 1080p with higher refresh rates. The TDP158 can be configured to support the HDMI 2.0 standard.

The TDP158 supports dual power supply rails of 1.1 V on VDD and 3.3 V on VCC for power reduction. Several methods of power management are implemented to reduce overall power consumption. TDP158 supports fixed receiver EQ gain using I2C or pin strap to compensate for different lengths input cable or board traces.



Features

  • AC-coupled TMDS or DisplayPort™ dual-mode physical layer input to HDMI 2.0b TMDS physical layer output supporting up to 6 Gbps data rate, compatible with HDMI 2.0b electrical parameters
  • Supporting DisplayPort dual-mode standard version 1.1
  • Support 4k2k60p and up to WUXGA 16-bit color depth or 1080p with higher refresh rates
  • Programmable fixed receiver equalizer up to 15.5 dB
  • Global or independent high speed lane control, pre-emphasis and transmit swing, and slew rate control
  • I2C or pin strap programmable
  • Configurable as a DisplayPort redriver through the I2C
  • Full lane swap on main lanes
  • Low power consumption
    • –200 mW active at 6-Gbps and –8 mW at shutdown state

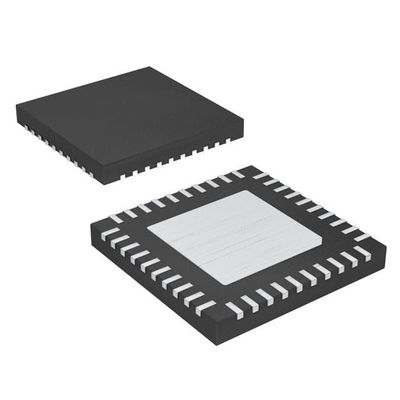

  • 40-pin, 0.4 mm Pitch, 5 mm × 5 mm, WQFN package, pin compatible to the SN75DP159RSB retimer

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Specialized Interfaces
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Product-Status Active
Applications HDMI
Interface -
Voltage-Supply 3.3V
Package-Case 40-WFQFN Exposed Pad
Supplier-Device-Package 40-WQFN (5x5)
Mounting-Type Surface Mount
Base-Product-Number TDP158
