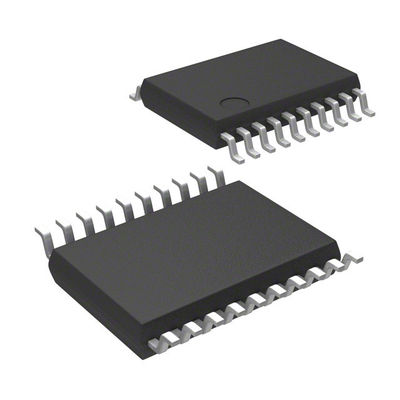

Surface Mount MCU Microcontroller Unit 16MHz 20TSSOP STM8S003F3P6TR

Brand Name STMicroelectronics
Model Number STM8S003F3P6TR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Processor STM8 Core Size 8-Bit
Speed 16MHz Connectivity I²C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Number Of I/O 16
Program Memory Size 8KB (8K X 8) Program Memory Type FLASH
EEPROM Size 128 X 8 RAM Size 1K X 8
Voltage - Supply (Vcc/Vdd) 2.95V ~ 5.5V Data Converters A/D 5x10b
Oscillator Type Internal Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
High Light

Surface Mount MCU Microcontroller Unit

,

MCU Microcontroller Unit 16MHz

,

STM8S003F3P6TR

Leave a Message
Product Description

STM8S003F3P6TR IC MCU 8BIT 8KB FLASH 20TSSOP STMicroelectronics

Product Details

Description

The STM8S003F3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016). TheSTM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-arttechnology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separateclock source, and a clock security system.


Features

16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization


Application

Consumer Electronics

Computers & Computer Peripherals

Embedded Design & Development

Utilities

Specifications

Attribute Attribute Value
Manufacturer STMicroelectronics
Product Category Microcontrollers
Series STM8S
Packaging Tape & Reel (TR)
Unit-Weight 0.006737 oz
Mounting-Style SMD/SMT
Package-Case 20-TSSOP (0.173", 4.40mm Width)
Operating-Temperature -40°C ~ 85°C (TA)
Supplier-Device-Package 20-TSSOP
Number-of-I-O 16 I/O
Speed 16MHz
EEPROM-Size 128 x 8
Core-Processor STM8
RAM-Size 1K x 8
Program Memory FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Connectivity I2C, IrDA, LIN, SPI, UART/USART
Voltage-Supply-Vcc-Vdd 2.95 V ~ 5.5 V
Core-Size 8-Bit
Program-Memory-Size 8KB (8K x 8)
Data-Converters A/D 5x10b
Oscillator-Type Internal
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Voltage 2.95 V to 5.5 V
Interface-Type I2C SPI UART
Core STM8
Processor-Series STM8S
Data-Bus-Width 8 bit
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 2.95 V
Package-Case TSSOP-20
Maximum-Clock-Frequency 16 MHz
Number-of-ADC-Channels 5 ADC Channels
Data-RAM-Size 1 kB
Data-ROM-Size 128 B
Number-of-Timers-Counters 3 Timer
ADC-Resolution 10 bit
Data-RAM-Type RAM
Data-ROM-Type EEPROM

Functional compatible component

Form,Package,Functional compatible component



Manufacturer Part# Description Manufacturer Compare
STM8S003F3P6
Microcontrollers and Processors
Mainstream Value line 8-bit MCU with 8 Kbytes Flash, 16 MHz CPU, integrated EEPROM STMicroelectronics STM8S003F3P6TR vs STM8S003F3P6

Descriptions

STM8 STM8S Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 20-TSSOP
8-bit Microcontrollers - MCU 8-Bit MCU Value Line 8kB Flash 16MHz EE
