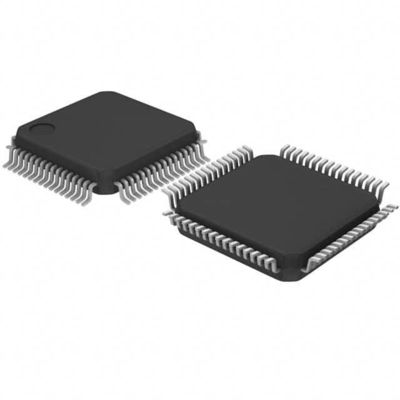

STM32F103RCT6 MCU Microcontroller Unit 32BIT 256KB FLASH 64LQFP STMicroelectronics

Brand Name STMicroelectronics
Model Number STM32F103RCT6
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Processor ARM® Cortex®-M3 Core Size 32-Bit Single-Core
Speed 72MHz Connectivity CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT Number Of I/O 51
Program Memory Size 256KB (256K X 8) Program Memory Type FLASH
EEPROM Size - RAM Size 48K X 8
Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount Package / Case 64-LQFP
Supplier Device Package -
High Light

MCU Microcontroller Unit 256KB

,

MCU Microcontroller Unit 64LQFP

,

STM32F103RCT6

You can tick the products you need and communicate with us in the message board.
Part Number Description
STM32F405RGT6 IC MCU 32BIT 1MB FLASH 64LQFP
STM32F051R8T6 IC MCU 32BIT 64KB FLASH 64LQFP
STM32F103R8T6 IC MCU 32BIT 64KB FLASH 64LQFP
STM32F103RET6 IC MCU 32BIT 512KB FLASH 64LQFP
STM32F103RBT6 IC MCU 32BIT 128KB FLASH 64LQFP
STM32F105RCT6 IC MCU 32BIT 256KB FLASH 64LQFP
Leave a Message
Part Number Description
Product Description

STM32F103RCT6 IC MCU 32BIT 256KB FLASH 64LQFP STMicroelectronics

Product Details

Description

The STM32F103xx medium-density performance line family incorporates the high performance ARM Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced ommunication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.



Features

* ARM 32-bit Cortex™-M3 CPU Core
– 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
– Single-cycle multiplication and hardware division



* Memories
– 64 or 128 Kbytes of Flash memory
– 20 Kbytes of SRAM



* Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration

Specifications

Attribute Attribute Value
Manufacturer STMicroelectronics
Product Category IC Chips
Manufacturer STMicroelectronics
Product-Category ARM Microcontrollers - MCU
RoHS Details
Mounting-Style SMD/SMT
Package-Case LQFP-64
Core ARM Cortex M3
Data-Bus-Width 32 bit
Maximum-Clock-Frequency 72 MHz
Program-Memory-Size 256 kB
Data-RAM-Size 48 kB
ADC-Resolution 12 bit
Operating-Supply-Voltage 2 V to 3.6 V
Maximum-Operating-Temperature + 85 C
Processor-Series ARM Cortex-M
Packaging Tray
Brand STMicroelectronics
Data-RAM-Type SRAM
Interface-Type CAN I2C SPI USART USB
Minimum-Operating-Temperature - 40 C
Number-of-ADC-Channels 16 ADC Channels
Number-of-I-Os 51 I/O
Number-of-Timers-Counters 8 Timer
Program-Memory-Type Flash
Series STM32F1
Supply-Voltage-Max 3.6 V
Supply-Voltage-Min 2 V
Tradename STM32
Unit-Weight 0.012088 oz

Descriptions

MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray
ARM Microcontrollers - MCU 32BIT Cortex M3 H/D 256 to 512 USB/CAN
